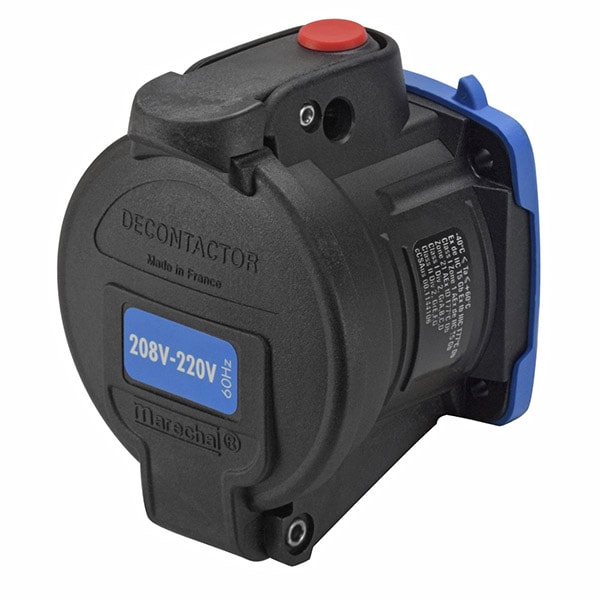

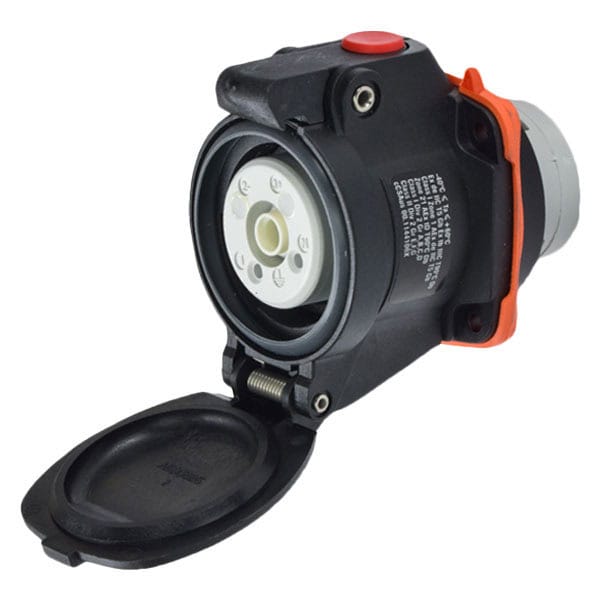

22-34072-843 RECEPTACLE PADLOCK PAWL
| Material | Poly |
|---|---|
| Color | Black |
| Phase Cond. Strip Len. | 13/16 in |
| Short Circuit Rating | 25 KA - MAKE & WITHSTAND |
| Maximum Operating Temperature | 140 F |
| Wire Temperature Rating | 60C |
| Voltage Color Code | Orange |
| Rated Voltage | 250 VAC |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-13 |
| Rated Current | 30 A |
| Number of Notch Positions | 24 |
| Minimum Operating Temperature | -40F (-40C) |
| Horsepower Rating | 3 HP |
| Number of Auxiliary Contacts | NO AUX |
| Phase Terminal Type | Screw terminal |
| Phase Terminal Tightening Torque | 10.6 IN-LBS / 1.2 N-M |
| Accessory Size | 2 |
| Keying Position | 7 |
| Frequency | 60 Hz |
| Load Break, Normal Operation | 30A |
| Short Circuit Rating, Fusing | 25 KA 70A (400%) RK1 NTD |
| Wiring Capacity | 14 AWG - 6 AWG |
| Primary IP Rating | 66/67 |
| Impact Rating | IK08 |
| Load Break, Abnormal Overload | 45 |
| Contact Configuration | 2P+G |
| Package Quantity | 1 |
