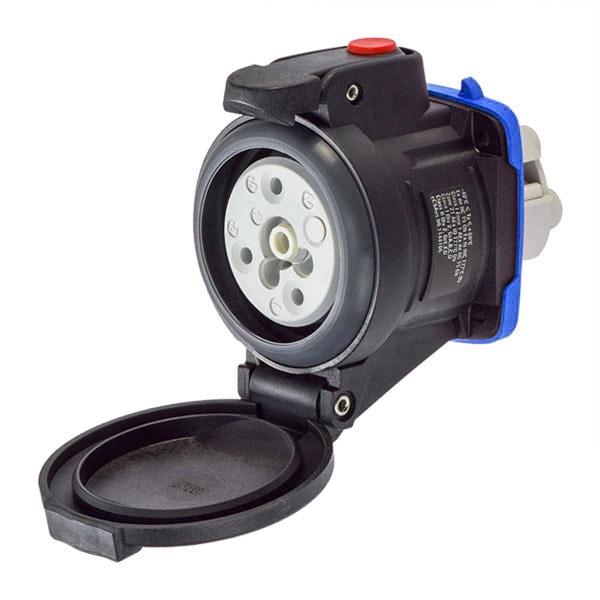

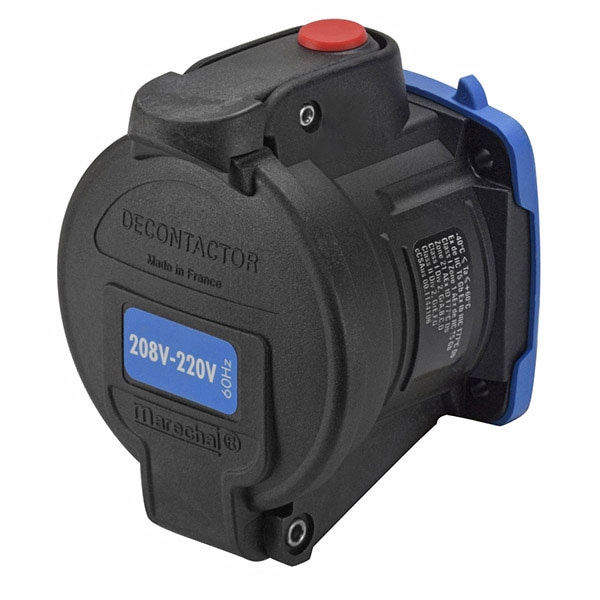

22-34163-972-R RECEPTACLE NORMALLY CLOSED LID
| Material | Poly |
|---|---|
| Color | Black |
| Number of Auxiliary Contacts | +2 AUX |
| Auxiliary Terminal Type | Screw |
| Wire Temperature Rating | 60C |
| Accessory Size | 2 |
| Aux. Cond. Strip Len. | 43/64 in |
| Contact Configuration | 3P+G |
| Frequency | 60 Hz |
| Short Circuit Rating | 25 KA - MAKE & WITHSTAND |
| Maximum Operating Temperature | 140 F |
| Wiring Capacity | 14 AWG - 6 AWG |
| Aux. Contact Max. Voltage Rating | 550VAC |
| Load Break, Abnormal Overload | 45 |
| Phase Terminal Type | Screw terminal |
| Load Break, Normal Operation | 30A |
| Phase Terminal Tightening Torque | 10.6 IN-LBS / 1.2 N-M |
| Number of Notch Positions | 24 |
| Minimum Operating Temperature | -40F (-40C) |
| Horsepower Rating | 5 HP |
| Phase Cond. Strip Len. | 13/16 in |
| Rated Voltage | 208 VAC |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-13 |
| Voltage Color Code | Blue |
| Keying Position | 16 |
| Short Circuit Rating, Fusing | 25 KA 70A (400%) RK1 NTD |
| Impact Rating | IK08 |
| Aux. Pilot Contact Current Rating | 5 A |
| Primary IP Rating | 66/67 |
| Aux. Terminal Wiring Capacity | 14 AWG - 10 AWG |
| Aux. Terminal Tightening Torque | 7 IN-LBS / 0.8 N-M |
| Rated Current | 30 A |
| Package Quantity | 1 |
