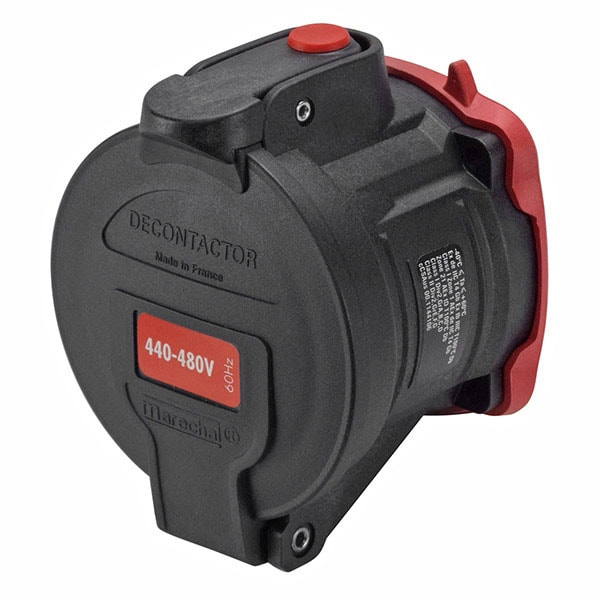

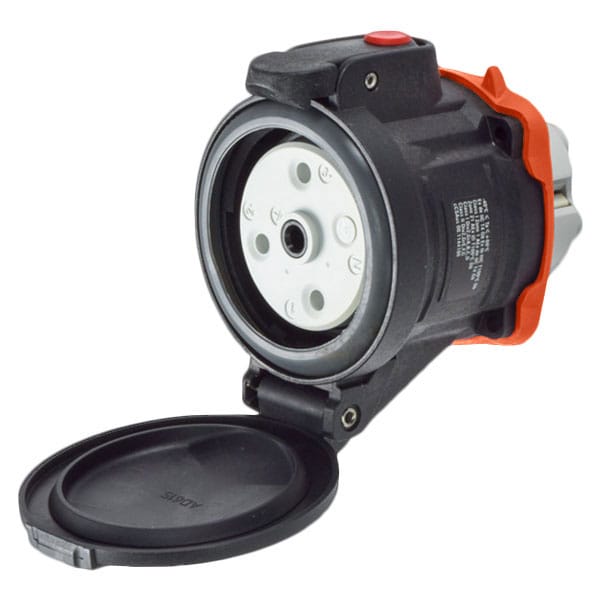

22-64073-R RECEPTACLE NORMALLY CLOSED LID
| Material | Poly |
|---|---|
| Color | Black |
| Short Circuit Rating, Fusing | 25 KA 100A (400%) RK1 NTD |
| Rated Current | 60 A |
| Horsepower Rating | 7.5 HP |
| Rated Voltage | 250 VAC |
| Wiring Capacity | 10 AWG - 4 AWG |
| Frequency | 60 Hz |
| Minimum Operating Temperature | -40F (-40C) |
| Contact Configuration | 3P+G |
| Phase Cond. Strip Len. | 13/16 in |
| Phase Terminal Tightening Torque | 22 IN-LBS / 2.49 N-M |
| Load Break, Abnormal Overload | 90 |
| Phase Terminal Type | Screw terminal |
| Short Circuit Rating | 25 KA - MAKE & WITHSTAND |
| Maximum Operating Temperature | 140 F |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-13 |
| Number of Auxiliary Contacts | NO AUX |
| Keying Position | 7 |
| Impact Rating | IK08 |
| Accessory Size | 3 |
| Load Break, Normal Operation | 60 |
| Primary IP Rating | 66/67 |
| Voltage Color Code | Orange |
| Wire Temperature Rating | 60C |
| Number of Notch Positions | 24 |
| Package Quantity | 1 |
