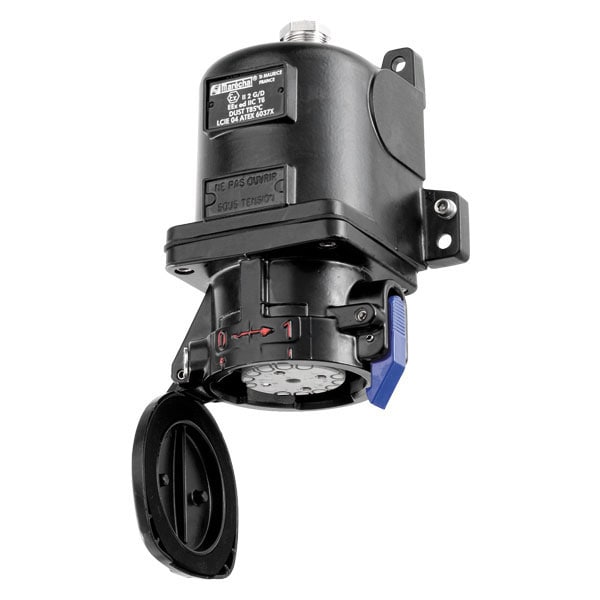

El receptáculo/caja Meltric 26-20163-34 es una solución robusta y confiable para conexiones eléctricas seguras. Fabricado con materiales de alta calidad, este producto es ideal para entornos industriales y comerciales.
| Material | Metal |
|---|---|
| Color | Black |
| Load Break, Normal Operation | 20 |
| Rated Current | 20 A |
| Load Break, Abnormal Overload | 30 |
| Phase Terminal Tightening Torque | 11 IN-LBS / 1.3 N-M |
| Rated Voltage | 208 VAC |
| Impact Rating | IK10 |
| Contact Configuration | 3P+G |
| Primary IP Rating | 65 |
| Number of Notch Positions | 12 |
| Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
| Cable Range | .430-.810 in |
| Keying Position | 45,116 |
| Accessory Size | 8 |
| Phase Cond. Strip Len. | 13/16 in |
| Maximum Operating Temperature | 140 F |
| Phase Terminal Type | Screw terminal |
| Frequency | 60 Hz |
| Wiring Capacity | 14 AWG - 8 AWG |
| Voltage Color Code | Blue |
| Metal Type | Aluminum painted |
| Minimum Operating Temperature | -13F (-25C) |
| Thread Size | 3/4" NPT |
| Package Quantity | 1 |
