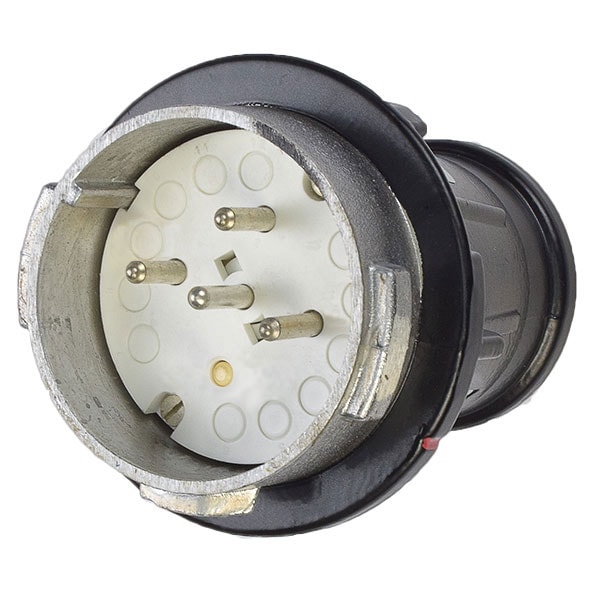

26-31073-32M PLUG
| Material | Metal |
|---|---|
| Color | Black |
| Thread Size | M32 |
| Accessory Size | 8 |
| Primary IP Rating | 65 |
| Rated Voltage | 250 VAC |
| Impact Rating | IK10 |
| Keying Position | 44,967 |
| Phase Cond. Strip Len. | 13/16 in |
| Wire Temperature Rating | 60C |
| Frequency | 50 Hz |
| Load Break, Abnormal Overload | 45A |
| Metal Type | Aluminum painted |
| Phase Terminal Tightening Torque | 11 IN-LBS / 1.3 N-M |
| Minimum Operating Temperature | -13F (-25C) |
| Wiring Capacity | 14 AWG - 8 AWG |
| Load Break, Normal Operation | 30A |
| Number of Notch Positions | 12 |
| Cable Range | .470-.830 in |
| Maximum Operating Temperature | 140 F |
| Contact Configuration | 3P+G |
| Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
| Phase Terminal Type | Screw terminal |
| Rated Current | 30 A |
| Voltage Color Code | Orange |
| Package Quantity | 1 |
