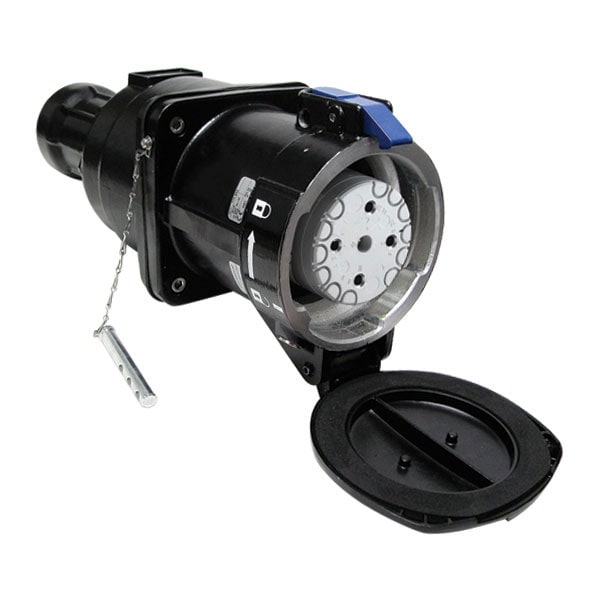

Conector Meltric 26-63047-40M para uso profesional. Conexión segura y confiable para aplicaciones técnicas.
| Material | Metal |
|---|---|
| Color | Black |
| Impact Rating | IK10 |
| Maximum Operating Temperature | 140 F |
| Phase Terminal Tightening Torque | 26 IN-LBS / 3 N-M |
| Cable Range | 0.63 to 1.06 in |
| Keying Position | 44,996 |
| Load Break, Abnormal Overload | 90 |
| Rated Current | 60 A |
| Rated Voltage | 480 VAC |
| Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
| Contact Configuration | 3 P+N+G |
| Frequency | 60 Hz |
| Voltage Color Code | Red |
| Metal Type | Aluminum painted |
| Phase Terminal Type | Screw terminal |
| Accessory Size | 9 |
| Load Break, Normal Operation | 60 |
| Primary IP Rating | 65 |
| Phase Cond. Strip Len. | 1-1/16 in |
| Wiring Capacity | 6 AWG - 1/0 AWG |
| Minimum Operating Temperature | -40F (-40C) |
| Thread Size | M40 |
| Number of Notch Positions | 12 |
| Package Quantity | 1 |
