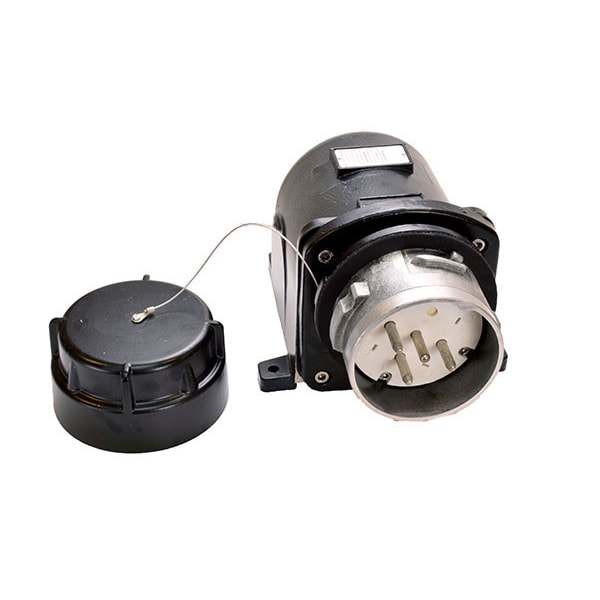

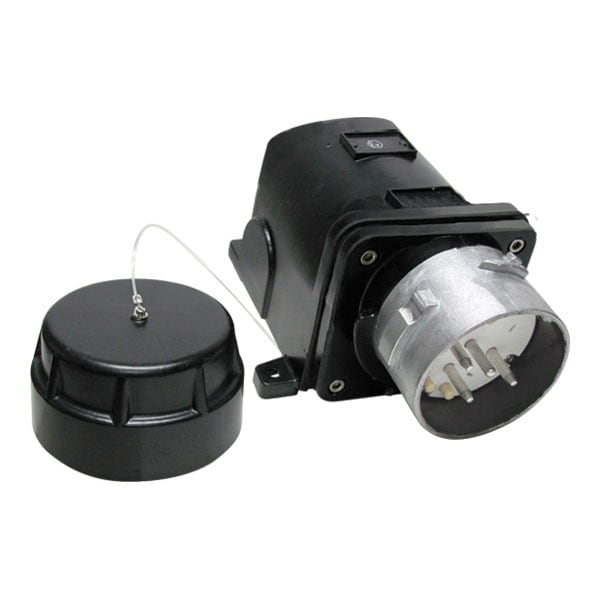

26-96043-112 INLET/BOX
| Material | Metal |
|---|---|
| Color | Black |
| Phase Cond. Strip Len. | 1-3/8 in |
| Rated Voltage | 480 VAC |
| Phase Terminal Tightening Torque | 53 IN-LBS / 6 N-M |
| Frequency | 60 Hz |
| Rated Current | 100 A |
| Metal Type | Aluminum painted |
| Thread Size | 1 1/2" NPT |
| Accessory Size | 9 |
| Keying Position | 44,997 |
| Number of Notch Positions | 12 |
| Wiring Capacity | 1/0 AWG - 2/0 AWG |
| Cable Range | 1.250-1.812 in |
| Impact Rating | IK10 |
| Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
| Load Break, Abnormal Overload | 150 |
| Primary IP Rating | 65 |
| Minimum Operating Temperature | -40F (-40C) |
| Phase Terminal Type | Screw terminal |
| Voltage Color Code | Red |
| Contact Configuration | 3P+G |
| Maximum Operating Temperature | 140 F |
| Load Break, Normal Operation | 100 |
| Package Quantity | 1 |
