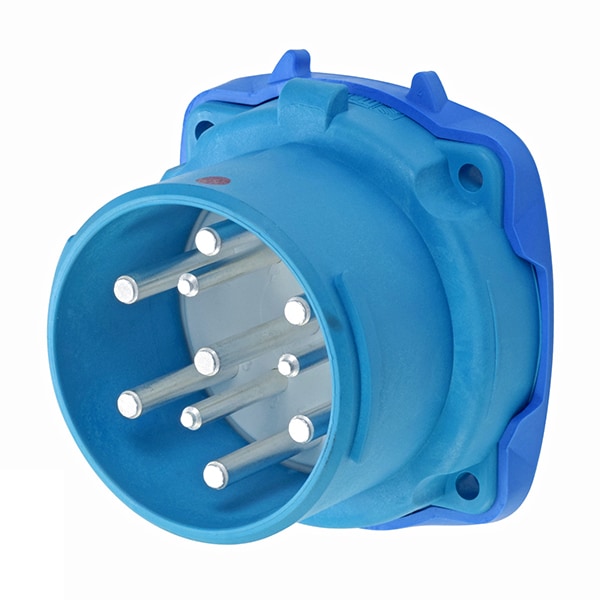

31-38961-173 INLET
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 50 A |
| Voltage | 600V AC/130V DC |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB6 |
| Number of Aux. Outputs | +3 AUX |
| Operating Temp. Range | -40C to 60C |
| Terminal Connection | Screw |
| Terminal Type | Screw terminal |
| Auxiliary Contact Voltage Rating | 400VAC |
| Keying Position | 1 |
| Auxiliary Contact Rating | 5 A |
| Wire Strip Length | Auxiliary: 5/8 in ; Phase: 1-1/16 in |
| Impact Rating | IK08 |
| Wire Size | 14 AWG to 10 AWG; 14 AWG to 8 AWG |
| Color Code | Blue |
| Hz | 60 Hz |
| Number of Notch Positions | 5 |
| Tightening Torque | Auxiliary: 16 IN-LBS / 1.8 N-M; Phase: 16 IN-LBS / 1.8 N-M |
| Contact Configuration | 6 P+G |
| Use With Installation Accessory Size | 3 |
| IP Rating | IP54/55 |
| Package Quantity | 1 |
