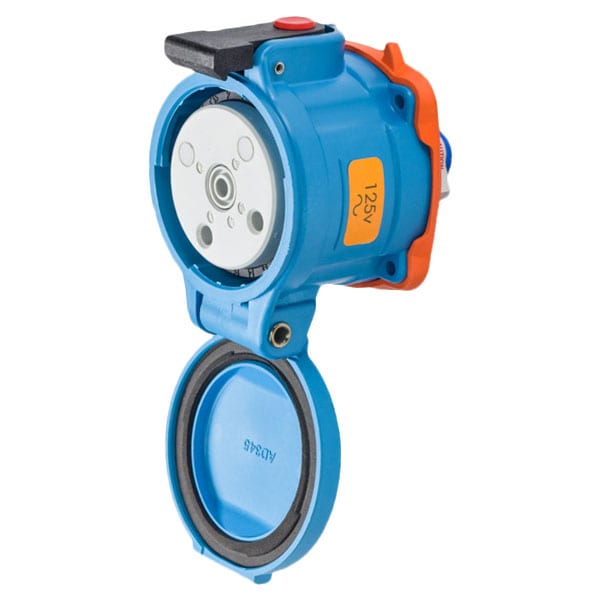

33-14075-843 RECEPTACLE PADLOCK PAWL
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Voltage | 125V AC |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 3R |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| HP | 3/4 |
| Use With | Mating Box MB3 |
| IP Rating | IP55 |
| Wire Strip Length | Phase: 7/16 in |
| Keying Position | 7 |
| Terminal Type | Screw terminal |
| Contact Configuration | 1P+N+G |
| Wire Temperature Rating | 60 deg C |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Number of Notch Positions | 24 |
| Number of Aux. Outputs | NO AUX |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 14 AWG to 8 AWG |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Hz | 60 Hz |
| Use With Installation Accessory Size | 2 |
| Color Code | Orange |
| Load Break Amp Rating | 20 A |
| Impact Rating | IK08 |
| Load Break Amp Rating_Abnormal Overload | 30 A |
| Package Quantity | 1 |
