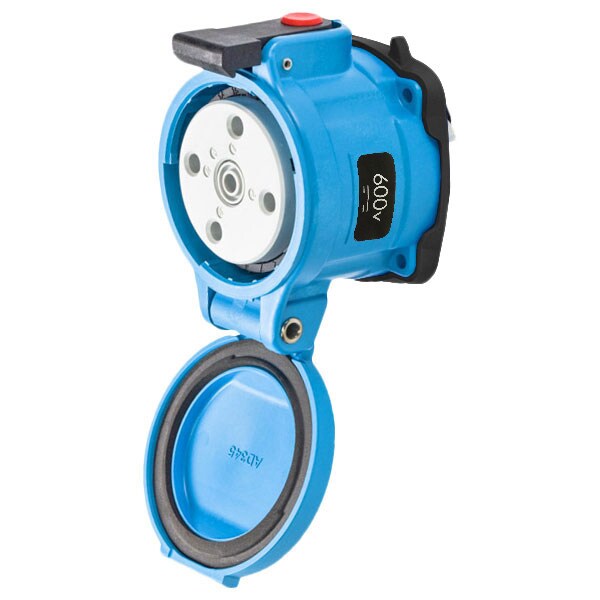

33-34058-S82 RECEPTACLE SPARE POSITION
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 600V DC |
| Amps - Plugs and Receptacles | 30 A |
| Color - Plugs and Receptacles | Blue |
| Standards | CSA 155873, E79796, UL 1682 |
| Use With | Mating Box MB30 |
| NEMA Rating | 3R |
| Use With Installation Accessory Size | 3 |
| Contact Configuration | 2 P+G |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 14 AWG to 4 AWG |
| Keying Position | 5 |
| Number of Notch Positions | 24 |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Wire Strip Length | Phase: 9/16 in |
| Impact Rating | IK08 |
| Wire Temperature Rating | 60 deg C |
| Terminal Type | Screw terminal |
| Color Code | Black |
| Load Break Amp Rating_Abnormal Overload | 45 A |
| Package Quantity | 1 |
