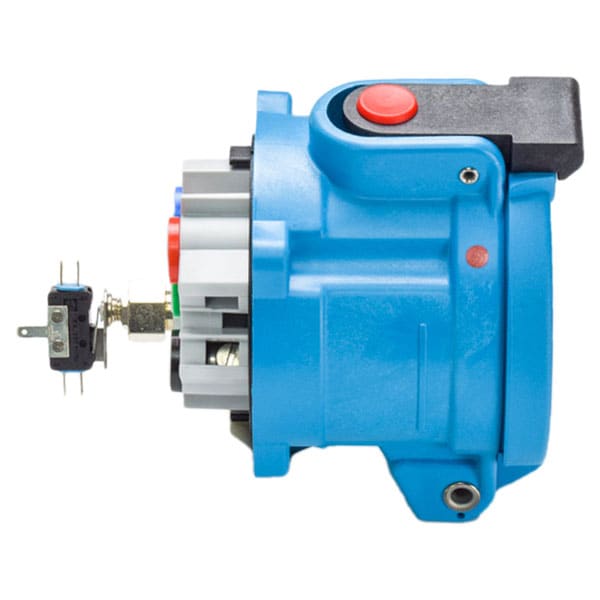

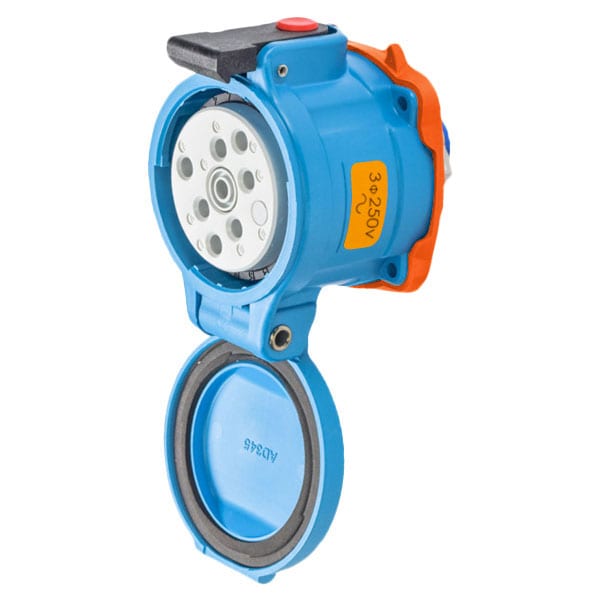

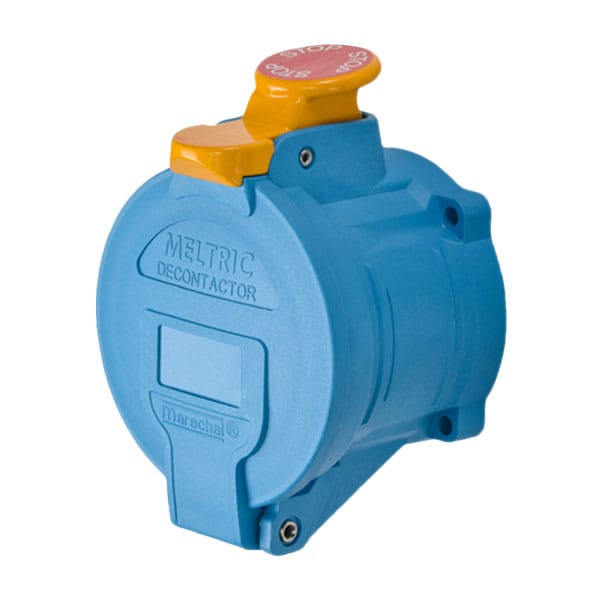

33-34073-974-375-4X-270 RECEPTACLE MUSHROOM PAWL TYPE 4X WATERTIGHTNES
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 30 A |
| Voltage | 250V AC |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 4X |
| Standards | UL508 |
| HP | 5 |
| Number of Aux. Outputs | +4 AUX |
| Wire Size | 14 AWG to 4 AWG |
| Hz | 60 Hz |
| Auxiliary Contact Rating | 1.2 A |
| Wire Strip Length | Phase: 3/4 in |
| Terminal Type | Screw terminal |
| Wire Temperature Rating | 60 deg C |
| Auxiliary Contact Voltage Rating | 600VAC |
| Color Code | Orange |
| Contact Configuration | 3 P+G |
| Operating Temp. Range | -40C to 60C |
| Keying Position | 7 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Impact Rating | IK08 |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Use With Installation Accessory Size | 3 |
| Load Break Amp Rating | 45 A |
| IP Rating | IP66/67 |
| Package Quantity | 1 |
