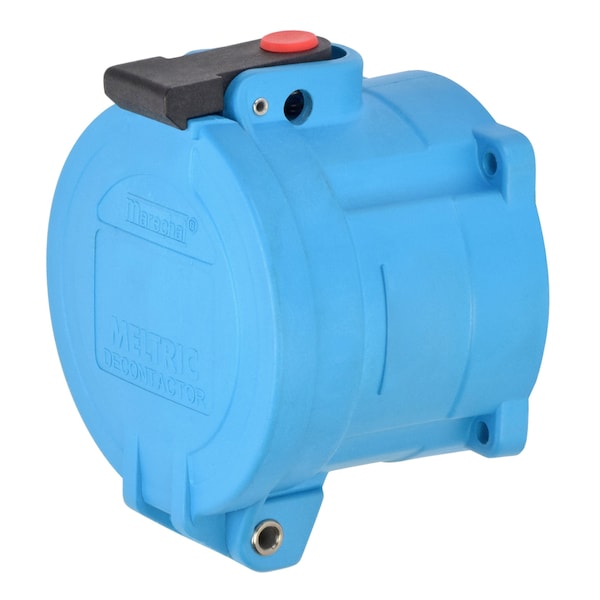

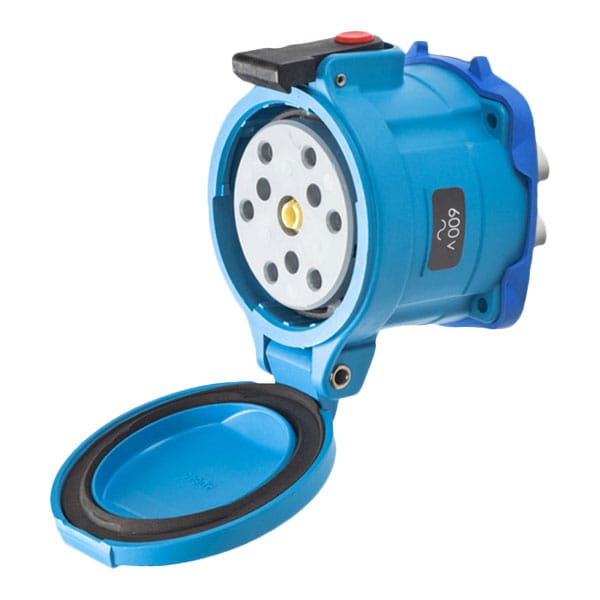

Receptáculo con traba para candado Meltric 33-34551-843, ideal para asegurar conexiones eléctricas de forma segura y confiable.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Number of Wires | 4 |
| IP Rating | IP55, IP54 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Use With | Mating Box MB6 |
| Voltage | 600V AC/130V DC |
| Body Material | Polyester |
| Terminal Type | Screw terminal |
| Wire Strip Length | Phase: 1-1/16 in |
| Keying Position | 1 |
| Color Code | Blue |
| Number of Aux. Outputs | NO AUX |
| Impact Rating | IK08 |
| Tightening Torque | Phase: 16 IN-LBS / 1.8 N-M |
| Operating Temp. Range | -40C to 60C |
| Hz | 60 Hz |
| Wire Size | 14 AWG to 8 AWG |
| Use With Installation Accessory Size | 4 |
| Number of Notch Positions | 5 |
| Contact Configuration | 5 P+G |
| Package Quantity | 1 |
