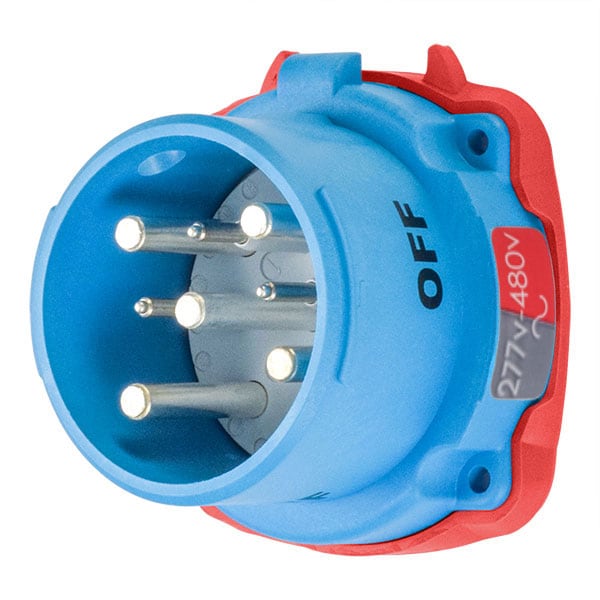

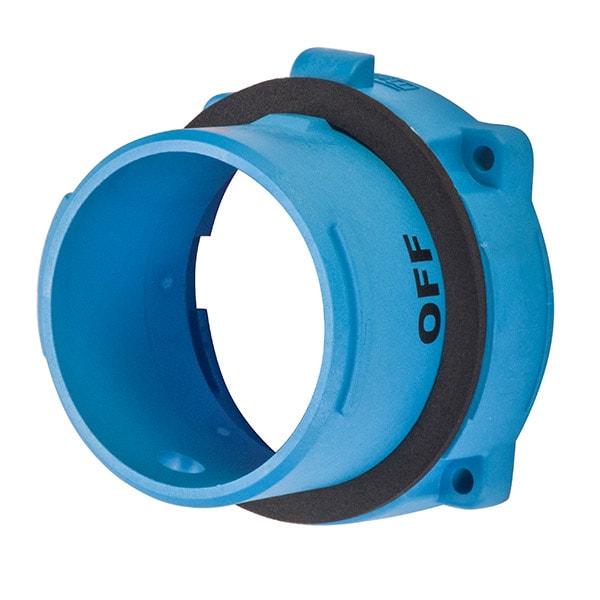

33-38047-973-4X INLET TYPE 4X WATERTIGHTNESS
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 30 A |
| Voltage | 277/480V AC |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 3R |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 3, 15 |
| Load Break Amp Rating | 45 A |
| Color Code | Red |
| Hz | 60 Hz |
| Terminal Type | Screw terminal |
| Wire Temperature Rating | 60 deg C |
| IP Rating | IP54 |
| Contact Configuration | 3P+N+G |
| Keying Position | 4 |
| Auxiliary Contact Voltage Rating | 600VAC |
| Auxiliary Contact Rating | 1.2 A |
| Wire Strip Length | Phase: 7/8 in |
| Use With Installation Accessory Size | 3 |
| Number of Aux. Outputs | +3 AUX |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Wire Size | 14 AWG to 4 AWG |
| Package Quantity | 1 |
