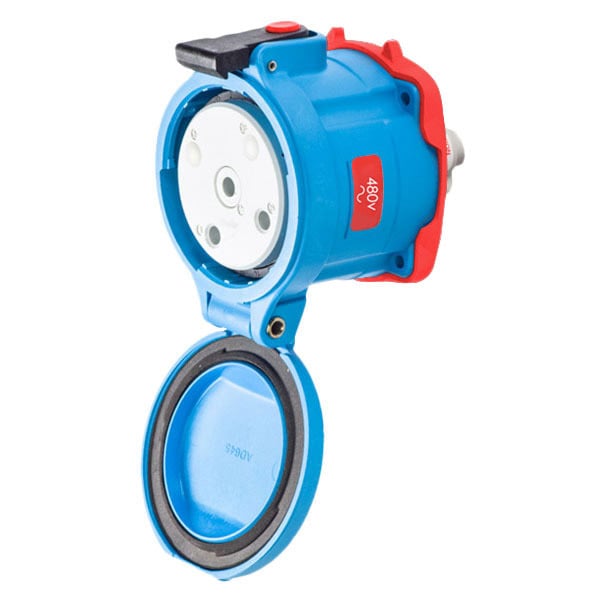

33-64042-843 RECEPTACLE PADLOCK PAWL
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 60 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| HP | 15 |
| Use With | Mating Box MB6 |
| NEMA Rating | 4X |
| Number of Aux. Outputs | NO AUX |
| Contact Configuration | 2 P+G |
| Number of Notch Positions | 24 |
| Wire Size | 10 AWG to 2 AWG |
| Color Code | Red |
| Operating Temp. Range | -40C to 60C |
| Keying Position | 4 |
| Use With Installation Accessory Size | 4 |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Hz | 60 Hz |
| IP Rating | IP66/67 |
| Load Break Amp Rating | 60 A |
| Wire Temperature Rating | 60 deg C |
| Impact Rating | IK08 |
| Wire Strip Length | Phase: 15/16 in |
| Terminal Type | Screw terminal |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Package Quantity | 1 |
