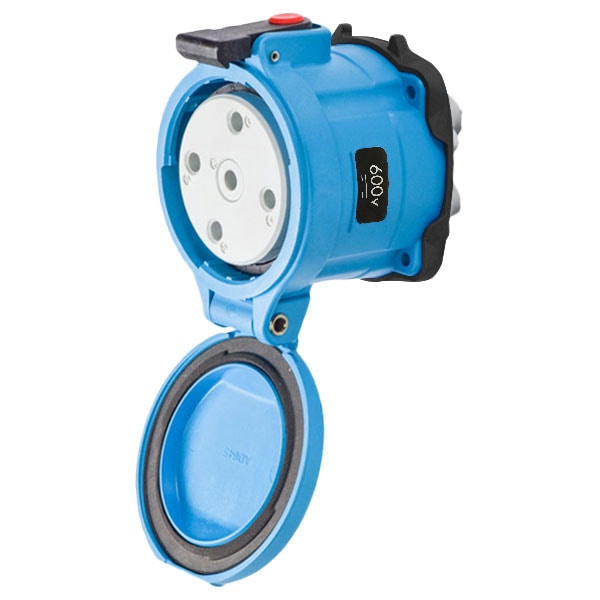

33-64058-S82 RECEPTACLE
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 600V DC |
| Amps - Plugs and Receptacles | 50 A |
| Color - Plugs and Receptacles | Blue |
| Standards | UL, E79796, UL 1682 |
| NEMA Rating | 3R |
| Use With | Mating Box MB6 |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Keying Position | 5 |
| Impact Rating | IK08 |
| Terminal Type | Screw terminal |
| Wire Size | 10 AWG to 2 AWG |
| Contact Configuration | 2 P+G |
| Use With Installation Accessory Size | 4 |
| Wire Temperature Rating | 60 deg C |
| Color Code | Black |
| Number of Notch Positions | 24 |
| Operating Temp. Range | -40C to 60C |
| Wire Strip Length | Phase: 15/16 in |
| Load Break Amp Rating_Abnormal Overload | 75 A |
| Package Quantity | 1 |
