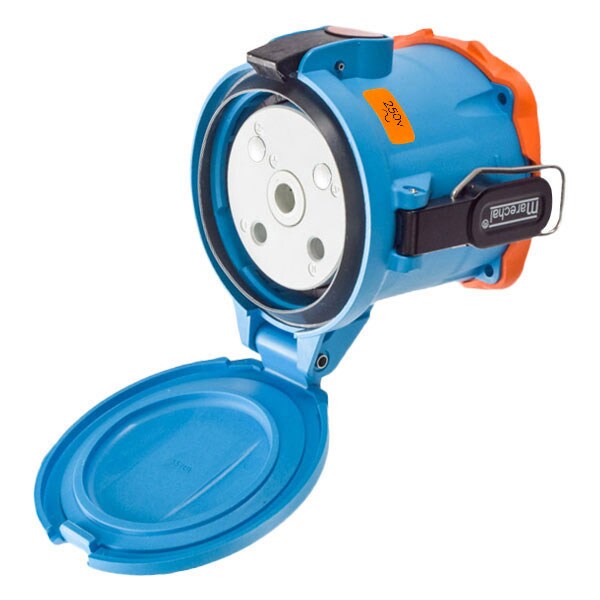

33-94072-NC RECEPTACLE NORMALLY CLOSED LID
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 250V AC |
| Amps - Plugs and Receptacles | 100 A |
| Color - Plugs and Receptacles | Blue |
| HP | 7-1/2 |
| Use With | Mating Box MB10 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| NEMA Rating | 4X |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 4 AWG to 2/0 AWG |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Use With Installation Accessory Size | 5 |
| Wire Temperature Rating | 60 deg C |
| IP Rating | IP66/67 |
| Terminal Type | Screw terminal |
| Load Break Amp Rating | 100 A |
| Number of Notch Positions | 24 |
| Color Code | Orange |
| Number of Aux. Outputs | NO AUX |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Keying Position | 7 |
| Wire Strip Length | Phase: 1-3/16 in |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Contact Configuration | 2 P+G |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
