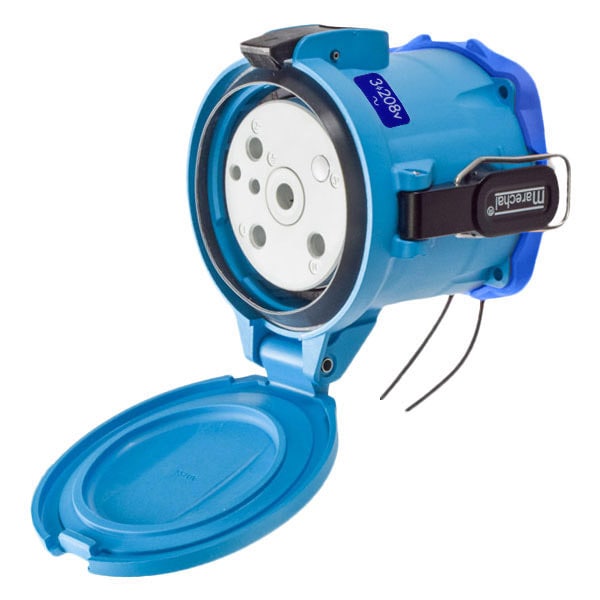

El receptáculo Meltric 33-94163-262 es una opción confiable y segura para sus necesidades de conexión eléctrica. Fabricado con los más altos estándares de calidad, este receptáculo garantiza un rendimiento óptimo en cualquier entorno.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP66/67 |
| NEMA Enclosure Rating | 4X |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 10 |
| Use With | Mating Box MB10 |
| Body Material | Polyester |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Auxiliary Contact Voltage Rating | 600VAC |
| Hz | 60 Hz |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Terminal Connection | Prewired |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Color Code | Blue |
| Number of Notch Positions | 24 |
| Keying Position | 16 |
| Number of Aux. Outputs | +2 AUX |
| Use With Installation Accessory Size | 5 |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 3 P+G |
| Load Break Amp Rating | 100 A |
| Terminal Type | Screw terminal |
| Wire Size | 14 AWG; 4 AWG to 2/0 AWG |
| Auxiliary Contact Rating | 0.3 A |
| Wire Strip Length | Phase: 1-3/16 in |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
