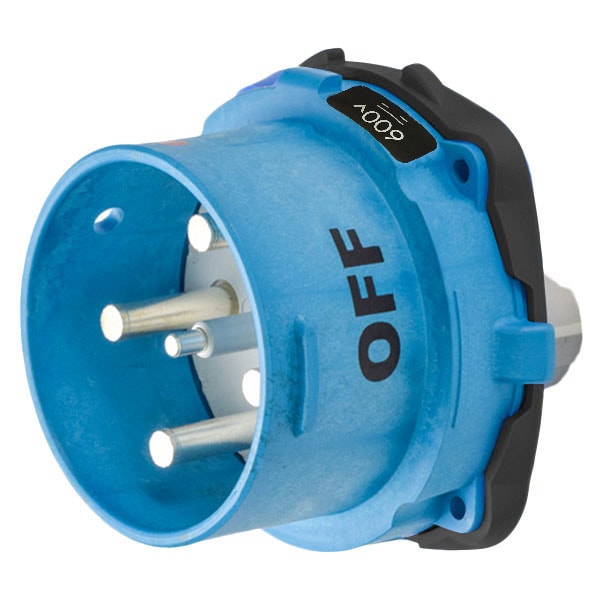

33-98058-S82 INLET
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 600V DC |
| Amps - Plugs and Receptacles | 60 A |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 4X |
| Standards | UL, E79796, UL 1682 |
| Wire Strip Length | Phase: 1-3/16 in |
| Color Code | Black |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Keying Position | 5 |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Use With Installation Accessory Size | 5 |
| IP Rating | IP66/67 |
| Number of Notch Positions | 24 |
| Terminal Type | Screw terminal |
| Wire Size | 6 AWG to 2/0 AWG |
| Contact Configuration | 2 P+G |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Package Quantity | 1 |
