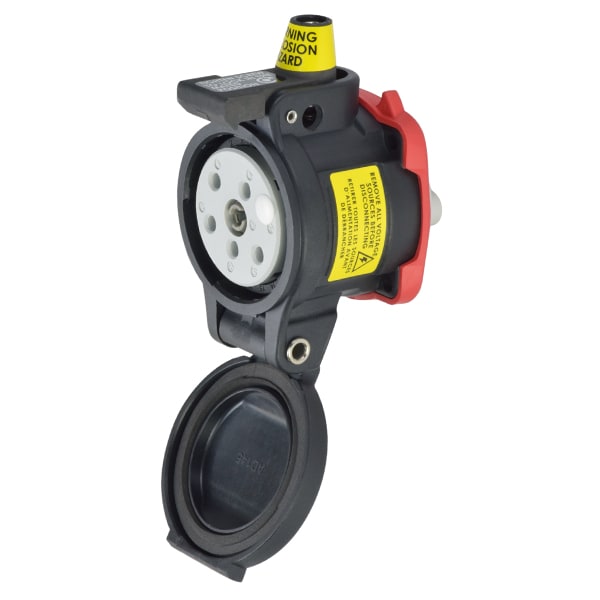

35-14043-972-HAZ RECEPTACLE
| Material | Poly |
|---|---|
| Color | Black |
| Phase Cond. Strip Len. | 7/16 in |
| Accessory Size | 2 |
| Number of Auxiliary Contacts | +2 AUX |
| Horsepower Rating | 7.5 HP |
| NEMA Watertightness | 4X |
| Frequency | 60 Hz |
| Rated Voltage | 480 VAC |
| Maximum Operating Temperature | 104 F |
| Contact Configuration | 3P+G |
| Wiring Capacity | 14 AWG - 8 AWG |
| Impact Rating | IK08 |
| Rated Current | 20 A |
| Phase Terminal Type | Screw terminal |
| Wiring Capacity, Type W | 14 AWG - 8 AWG |
| Aux. Contact Max. Voltage Rating | 600VAC |
| Aux. Pilot Contact Current Rating | 1.2 A |
| Number of Notch Positions | 24 |
| Voltage Color Code | Red |
| Keying Position | 4 |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Wire Temperature Rating | 60C |
| Phase Terminal Tightening Torque | 15 IN-LBS / 1.7 N-M |
| Short Circuit Rating, Fusing | 100 KA 80A (400%) RK1 NTD |
| Minimum Operating Temperature | -40F (-40C) |
| Load Break, Abnormal Overload | 30A |
| Load Break, Normal Operation | 20A |
| UL508 Pilot Rating | 2 @ CODE A600 |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Mating Box | MB3 |
| Package Quantity | 1 |
