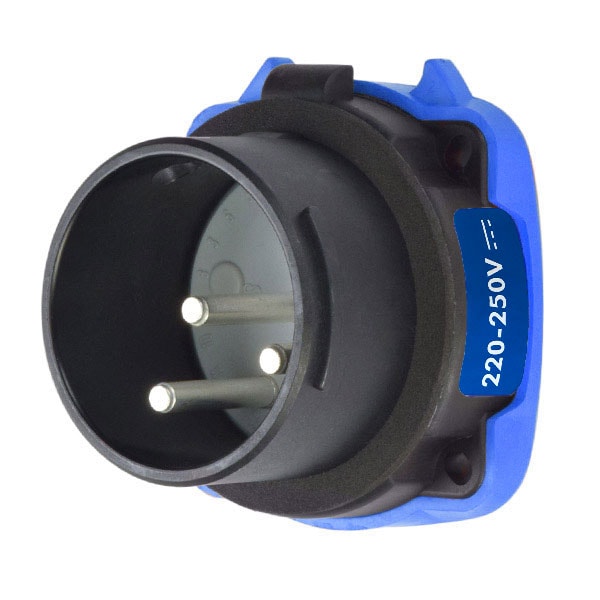

35-18209-HAZ INLET
| Material | Poly |
|---|---|
| Color | Black |
| Rated Voltage | 250 VDC |
| Contact Configuration | 2P+G |
| Wiring Capacity | 14 AWG - 8 AWG |
| Mating Box | MB3M |
| Minimum Operating Temperature | -40F (-40C) |
| Phase Terminal Tightening Torque | 15 IN-LBS / 1.7 N-M |
| Rated Current | 20 A |
| Maximum Operating Temperature | 104 F |
| NEMA Watertightness | 4X |
| Voltage Color Code | Blue |
| Impact Rating | IK08 |
| Number of Notch Positions | 24 |
| Phase Terminal Type | Screw terminal |
| Keying Position | 20 |
| Wire Temperature Rating | 60C |
| Phase Cond. Strip Len. | 3/4 in |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Wiring Capacity, Type W | 14 AWG - 8 AWG |
| Frequency | DC |
| Accessory Size | 2 |
| Load Break, Abnormal Overload | 30A |
| Package Quantity | 1 |
