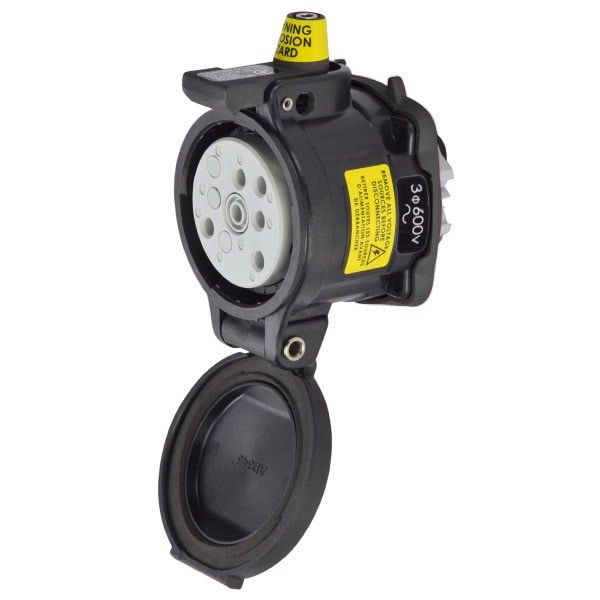

35-34143-972-HAZ RECEPTACLE
| Material | Poly |
|---|---|
| Color | Black |
| Rated Current | 30 A |
| Aux. Terminal Wiring Capacity | 14 AWG |
| Wiring Capacity, Type W | 14 AWG - 4 AWG |
| Phase Terminal Type | Screw terminal |
| Phase Terminal Tightening Torque | 15 IN-LBS / 1.7 N-M |
| Frequency | 60 Hz |
| Voltage Color Code | Black |
| Phase Cond. Strip Len. | 9/16 in |
| Number of Notch Positions | 24 |
| Auxiliary Terminal Type | Screw |
| Accessory Size | 3 |
| Horsepower Rating | 15 HP |
| Load Break, Abnormal Overload | 45A |
| Maximum Operating Temperature | 104 F |
| Aux. Pilot Contact Current Rating | 1.2 A |
| NEMA Watertightness | 4X |
| Aux. Contact Max. Voltage Rating | 600VAC |
| UL508 Pilot Rating | 2 @ CODE A600 |
| Number of Auxiliary Contacts | +2 AUX |
| Load Break, Normal Operation | 30A |
| Wiring Capacity | 14 AWG - 4 AWG |
| Impact Rating | IK08 |
| Short Circuit Rating, Fusing | 100 KA 125A (400%) RK1 NTD |
| Keying Position | 14 |
| Wire Temperature Rating | 60C |
| Aux. Terminal Tightening Torque | 15 IN-LBS / 1.7 N-M |
| Contact Configuration | 3P+G |
| Aux. Cond. Strip Len. | 1/2 in |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Minimum Operating Temperature | -40F (-40C) |
| Mating Box | MB3 |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Rated Voltage | 600 VAC |
| Package Quantity | 1 |
