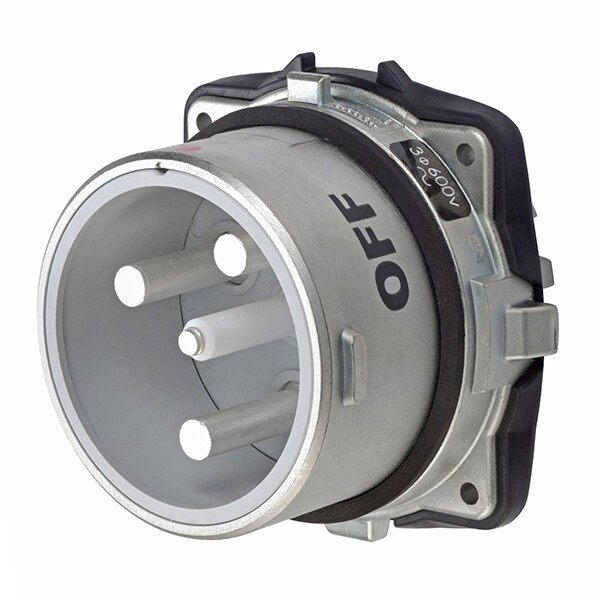

36-28143-A155-HAZ INLET WITH NO LOCKOUT HOLE
| Material | Metal |
|---|---|
| Color | Metal |
| Rated Current | 200 A |
| Minimum Operating Temperature | -40F (-40C) |
| Metal Type | Zamak |
| NEMA Watertightness | 4X |
| Phase Terminal Tightening Torque | 110 IN-LBS / 12.4 N-M |
| Wiring Capacity | 4 AWG - 4/0 AWG |
| Load Break, Abnormal Overload | 300A |
| Number of Auxiliary Contacts | NO AUX |
| Short Circuit Rating, Fusing | 10 KA 500A (400%) RK1 NTD |
| Keying Position | 14 |
| Phase Cond. Strip Len. | 1-1/2 in |
| Voltage Color Code | Black |
| Load Break, Normal Operation | 200A |
| Wiring Capacity, Type W | 4 AWG - 4/0 AWG |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Impact Rating | IK09 |
| Rated Voltage | 600 VAC |
| Contact Configuration | 3P+G |
| Maximum Operating Temperature | 104 F |
| Accessory Size | 6 |
| Wire Temperature Rating | 60C |
| Number of Notch Positions | 12 |
| Horsepower Rating | 100 HP |
| Phase Terminal Type | Screw terminal |
| Frequency | 60 Hz |
| Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
| Mating Box | MB20 |
| Package Quantity | 1 |
