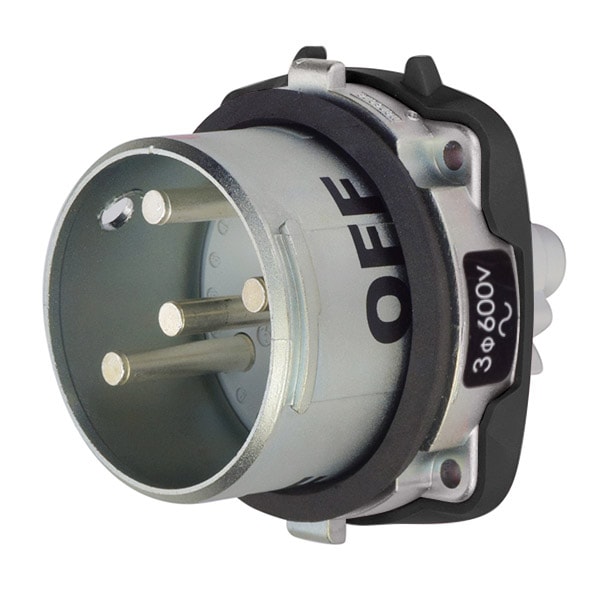

36-68143-HAZ INLET
| Material | Metal |
|---|---|
| Color | Metal |
| Impact Rating | IK09 |
| Mating Box | MB6 |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Phase Terminal Tightening Torque | 48 IN-LBS / 5.4 N-M |
| Contact Configuration | 3P+G |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Phase Terminal Type | Screw terminal |
| Keying Position | 14 |
| Wiring Capacity, Type W | 10 AWG - 2 AWG |
| Number of Notch Positions | 24 |
| Rated Current | 60 A |
| Number of Auxiliary Contacts | NO AUX |
| Phase Cond. Strip Len. | 15/16 in |
| Wire Temperature Rating | 60C |
| Accessory Size | 4 |
| Wiring Capacity | 10 AWG - 2 AWG |
| Voltage Color Code | Black |
| Metal Type | Zamak |
| Horsepower Rating | 25 HP |
| Short Circuit Rating, Fusing | 100 KA 250A (400%) RK1 NTD |
| Maximum Operating Temperature | 104 F |
| Minimum Operating Temperature | -40F (-40C) |
| Load Break, Normal Operation | 90A |
| Rated Voltage | 600 VAC |
| NEMA Watertightness | 4X |
| Frequency | 60 Hz |
| Package Quantity | 1 |
