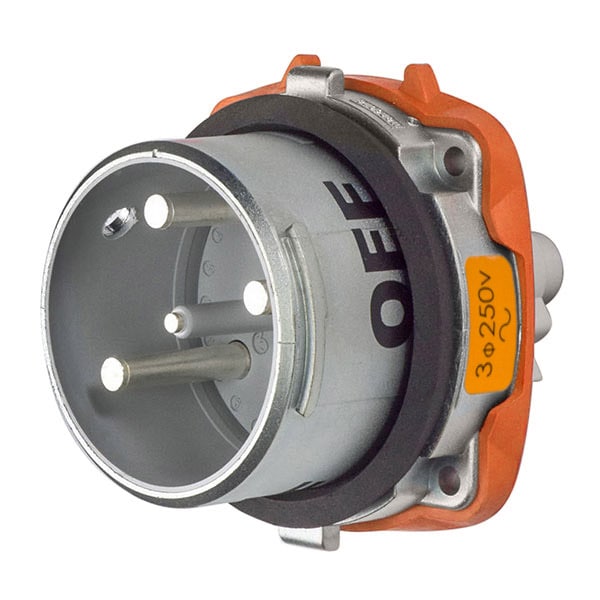

36-68173-C-K07-HAZ INLET
| Material | Metal |
|---|---|
| Color | Metal |
| Impact Rating | IK09 |
| Mating Box | MB6 |
| Metal Type | Zamak |
| NEMA Watertightness | 4X |
| Maximum Operating Temperature | 104 F |
| Phase Terminal Type | Screw terminal |
| Frequency | 60 Hz |
| Phase Cond. Strip Len. | 15/16 in |
| Voltage Color Code | Orange |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Minimum Operating Temperature | -40F (-40C) |
| Number of Auxiliary Contacts | NO AUX |
| Horsepower Rating | 20 HP |
| Accessory Size | 4 |
| Rated Current | 100 A |
| Wiring Capacity, Type W | 10 AWG - 2 AWG |
| Rated Voltage | 250 VAC |
| Wire Temperature Rating | 60C |
| Keying Position | 17 |
| Wiring Capacity | 10 AWG - 2 AWG |
| Load Break, Normal Operation | 100A |
| Phase Terminal Tightening Torque | 48 IN-LBS / 5.4 N-M |
| Short Circuit Rating, Fusing | 100 KA 250A (400%) RK1 NTD |
| Load Break, Abnormal Overload | 150A |
| Contact Configuration | 3P+G |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Package Quantity | 1 |
