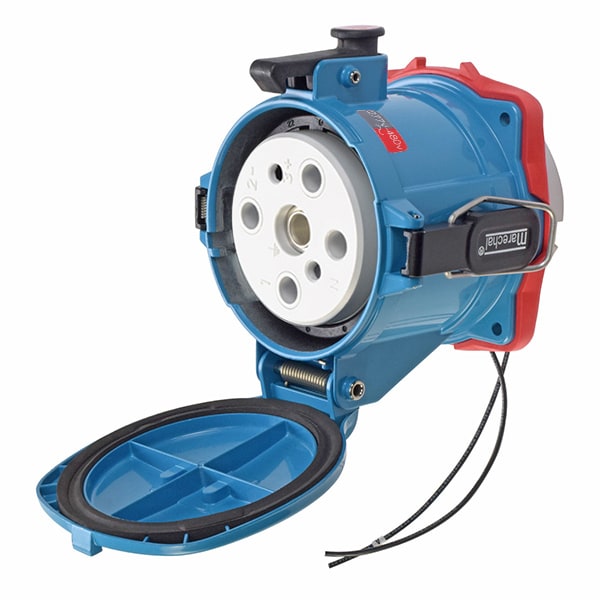

37-24047-972-843-NC RECEPTACLE PADLOCK PAWL NORMALLY CLOSED LID
| Body Material - Pin and Sleeve | Zamak |
|---|---|
| Amps - Plugs and Receptacles | 200 A |
| Voltage | 277/480V AC |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB20 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 100 |
| NEMA Rating | 3R |
| Number of Notch Positions | 12 |
| Impact Rating | IK09 |
| Tightening Torque | Phase: 110 IN-LBS / 12.4 N-M |
| Number of Aux. Outputs | +2 AUX |
| Keying Position | 4 |
| Wire Strip Length | Phase: 1-1/2 in |
| Terminal Type | Screw terminal |
| Hz | 60 Hz |
| Load Break Amp Rating | 200 A |
| Auxiliary Contact Rating | 0.3 A |
| Color Code | Red |
| Wire Temperature Rating | 60 deg C |
| Wire Size | 14 AWG; 4 AWG to 4/0 AWG |
| Terminal Connection | Prewired |
| Contact Configuration | 3P+N+G |
| Use With Installation Accessory Size | 6 |
| Auxiliary Contact Voltage Rating | 600VAC |
| IP Rating | IP54 |
| Operating Temp. Range | -40C to 60C |
| Short Circuit Current Rating | 10 KA - MAKE & WITHSTAND |
| Load Break Amp Rating_Abnormal Overload | 300 A |
| Package Quantity | 1 |
