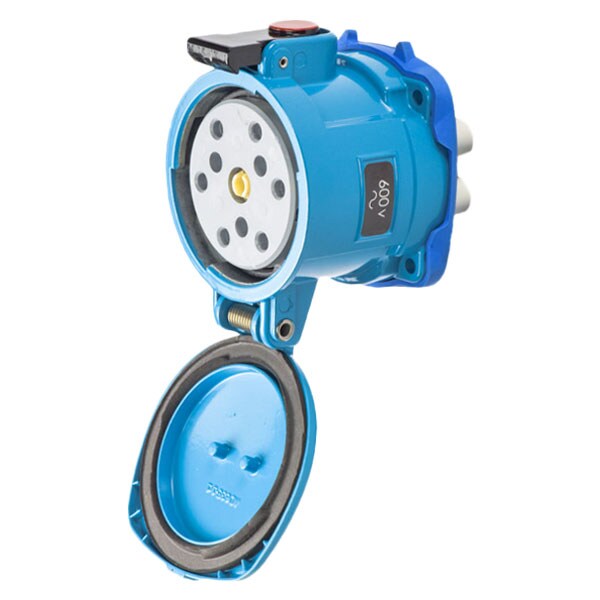

37-34551 RECEPTACLE
| Body Material - Pin and Sleeve | Zamak |
|---|---|
| Voltage | 600V AC/130V DC |
| Amps - Plugs and Receptacles | 30 A |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB6 |
| Wire Size | 14 AWG to 8 AWG |
| Impact Rating | IK09 |
| Terminal Type | Screw terminal |
| Keying Position | 1 |
| Hz | 60 Hz |
| Wire Strip Length | Phase: 1-1/16 in |
| Color Code | Blue |
| IP Rating | IP54/55 |
| Use With Installation Accessory Size | 4 |
| Number of Aux. Outputs | NO AUX |
| Tightening Torque | Phase: 16 IN-LBS / 1.8 N-M |
| Contact Configuration | 5 P+G |
| Operating Temp. Range | -40C to 60C |
| Number of Notch Positions | 5 |
| Package Quantity | 1 |
