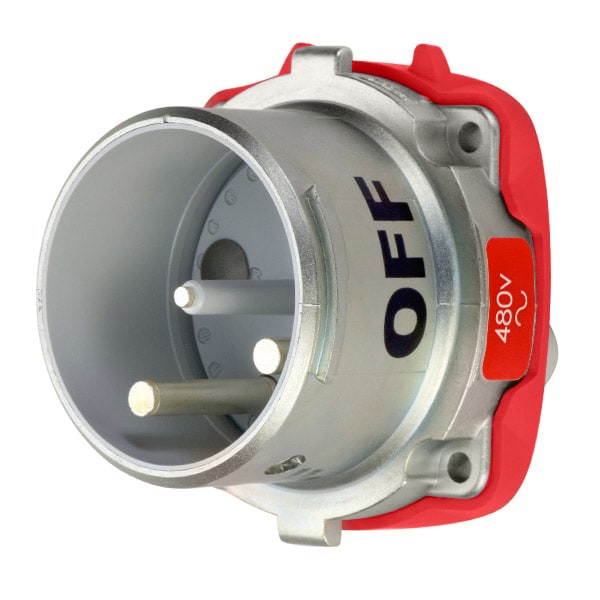

37-68242-C-K04 INLET
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Amps - Plugs and Receptacles | 100 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Metal |
| NEMA Rating | 4X |
| HP | 25 |
| Use With | Mating Box MB6 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| Load Break Amp Rating | 100 A |
| Terminal Type | Screw terminal |
| Operating Temp. Range | -40C to 60C |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 4 |
| Number of Aux. Outputs | NO AUX |
| Wire Strip Length | Phase: 15/16 in |
| Keying Position | 24 |
| Hz | 60 Hz |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Wire Size | 10 AWG to 2 AWG |
| Color Code | Red |
| Impact Rating | IK10 |
| Contact Configuration | 2 P+G |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Number of Notch Positions | 24 |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
