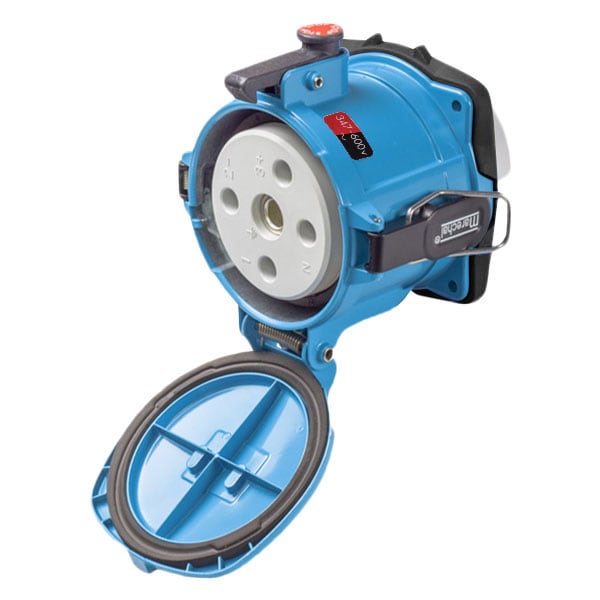

39-24027-K14-843 RECEPTACLE PADLOCK PAWL
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Voltage | 347/600V AC |
| Amps - Plugs and Receptacles | 250 A |
| Color - Plugs and Receptacles | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| NEMA Rating | 4X |
| Use With | Mating Box MB20 |
| Color Code | Black |
| Wire Strip Length | Phase: 1-1/2 in |
| Contact Configuration | 3P+N+G |
| Use With Installation Accessory Size | 6 |
| Operating Temp. Range | -40C to 60C |
| Hz | 60 Hz |
| Wire Temperature Rating | 60 deg C |
| Wire Size | 4 AWG to 4/0 AWG |
| Number of Notch Positions | 12 |
| Keying Position | 2 |
| Tightening Torque | Phase: 110 IN-LBS / 12.4 N-M |
| Short Circuit Current Rating | 10 KA - MAKE & WITHSTAND |
| Terminal Type | Screw terminal |
| IP Rating | IP66/67 |
| Impact Rating | IK10 |
| Load Break Amp Rating | 250 A |
| Load Break Amp Rating_Abnormal Overload | 375 A |
| Package Quantity | 1 |
