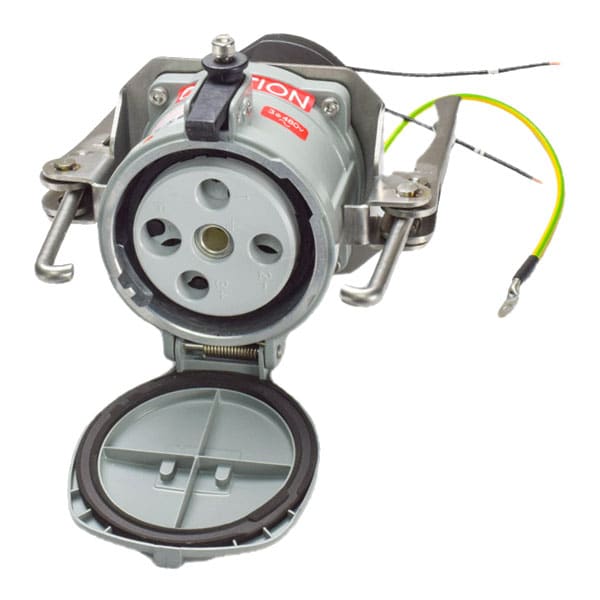

39-44043-172 RECEPTACLE
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Amps - Plugs and Receptacles | 400 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Gray |
| Use With | Mating Box MB40 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL508 |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Number of Notch Positions | 12 |
| Contact Configuration | 3 P+G |
| Operating Temp. Range | -40C to 60C |
| Auxiliary Contact Voltage Rating | 600VAC |
| Short Circuit Current Rating | 18 KA - WITHSTAND |
| Keying Position | 4 |
| Wire Size | 14 AWG; 2 AWG to 350 MCM |
| Color Code | Red |
| Auxiliary Contact Rating | 0.3 A |
| Terminal Type | Screw terminal |
| Use With Installation Accessory Size | 7 |
| Hz | 60 Hz |
| Impact Rating | IK10 |
| IP Rating | IP66/67 |
| Terminal Connection | Prewired |
| Wire Strip Length | Phase: 2-3/8 in |
| Number of Aux. Outputs | +2 AUX |
| Load Break Amp Rating_Abnormal Overload | 600 A |
| Package Quantity | 1 |
