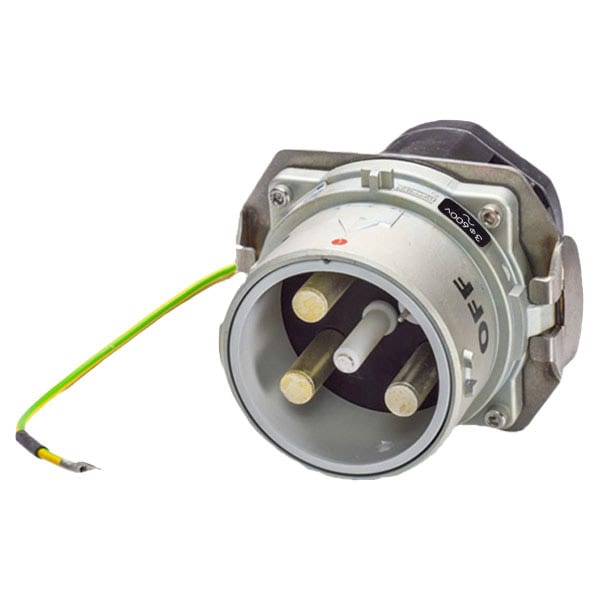

39-48143-172 INLET
| Body Material - Pin and Sleeve | Zamak |
|---|---|
| Voltage | 600V AC |
| Amps - Plugs and Receptacles | 350 A |
| Color - Plugs and Receptacles | Metal |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL508 |
| Use With Installation Accessory Size | 7 |
| Wire Size | 14 AWG; 2 AWG to 350 MCM |
| Impact Rating | IK09 |
| IP Rating | IP54 |
| Auxiliary Contact Rating | 0.3 A |
| Wire Strip Length | Phase: 2-3/8 in |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Contact Configuration | 3 P+G |
| Number of Aux. Outputs | +2 AUX |
| Operating Temp. Range | -40C to 60C |
| Auxiliary Contact Voltage Rating | 600VAC |
| Hz | 60 Hz |
| Terminal Connection | Prewired |
| Short Circuit Current Rating | 18 KA - WITHSTAND |
| Number of Notch Positions | 12 |
| Color Code | Black |
| Keying Position | 14 |
| Load Break Amp Rating_Abnormal Overload | 600 A |
| Package Quantity | 1 |
