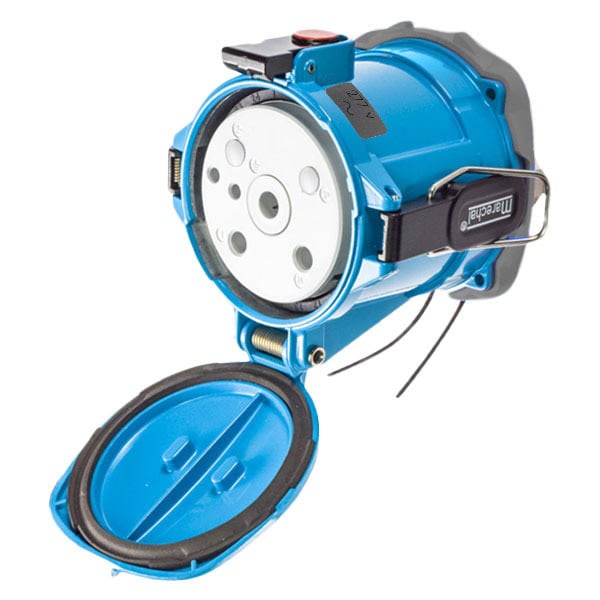

39-94245-K04-262 RECEPTACLE
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Amps - Plugs and Receptacles | 150 A |
| Voltage | 277V AC |
| Color - Plugs and Receptacles | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508 |
| Use With | Mating Box MB10 |
| NEMA Rating | 4X |
| Number of Notch Positions | 24 |
| Keying Position | 24 |
| Wire Strip Length | Phase: 1-3/16 in |
| Operating Temp. Range | -40C to 60C |
| Color Code | Gray |
| Auxiliary Contact Rating | 0.3 A |
| Auxiliary Contact Voltage Rating | 600VAC |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Contact Configuration | 1P+N+G |
| Wire Temperature Rating | 60 deg C |
| Load Break Amp Rating | 150 A |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Terminal Connection | Prewired |
| Impact Rating | IK10 |
| Wire Size | 14 AWG; 4 AWG to 2/0 AWG |
| Hz | 60 Hz |
| Number of Aux. Outputs | +2 AUX |
| Use With Installation Accessory Size | 5 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Load Break Amp Rating_Abnormal Overload | 225 A |
| Package Quantity | 1 |
