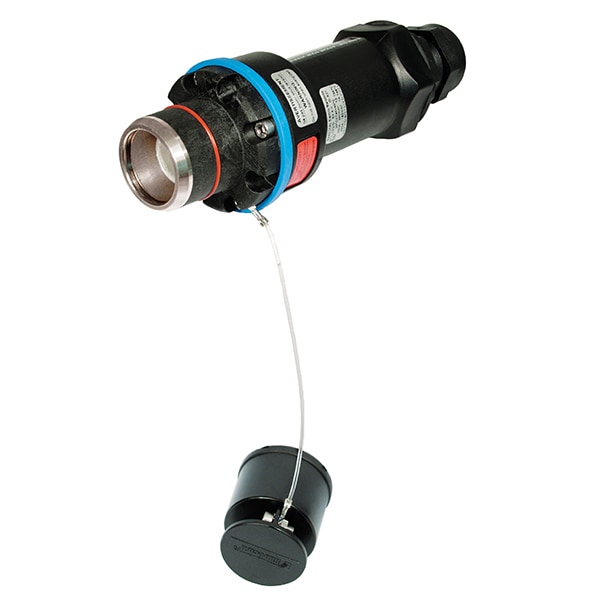

42-41003-40P PLUG
| Material | Poly |
|---|---|
| Color | Black |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Maximum Operating Temperature | 140 F |
| Rated Voltage | 600 VAC |
| Frequency | 60 Hz |
| Accessory Size | S |
| Pole Color Code | Blue |
| Impact Rating | IK08 |
| Contact Configuration | L3 |
| Aux. Terminal Wiring Capacity | 14 AWG |
| Auxiliary Terminal Type | Prewired |
| Rated Current | 600 A |
| Number of Auxiliary Contacts | +2 AUX |
| Aux. Contact Max. Voltage Rating | 250VAC |
| Minimum Operating Temperature | -4F (-20C) |
| Phase Terminal Tightening Torque | 360 IN-LBS / 40 N-M |
| Primary IP Rating | 65/66 |
| Wiring Capacity | 2/0 AWG - 777 MCM |
| Aux. Pilot Contact Current Rating | 1 A |
| Thread Size | M40 |
| Phase Terminal Type | Lug terminal |
| Package Quantity | 1 |
