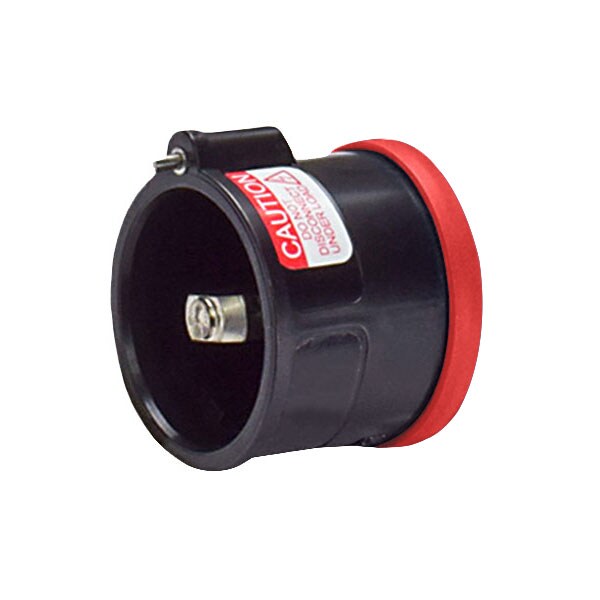

Entrada 45-3800P-P80 de Meltric, ideal para conectar equipos de forma segura y confiable. Cumple con los más altos estándares de calidad y seguridad.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 400 A |
| Voltage Rating | 600V AC |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| Housing Color | Black |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 1691-12, E473415, UL 1691 |
| Voltage | 600V DC |
| Body Material | Polyester |
| Operating Temp. Range | -40C to 60C |
| Contact Configuration | P |
| Wire Temperature Rating | 90 deg C |
| Impact Rating | IK08 |
| Number of Notch Positions | 5 |
| Wire Strip Length | Phase: 1-1/8 in |
| Short Circuit Current Rating | 10 KA - WITHSTAND |
| Use With Installation Accessory Size | M |
| Wire Size | 1/0 AWG to 450 MCM |
| Terminal Type | Lug terminal |
| Tightening Torque | Phase: 360 IN-LBS / 40 N-M |
| Package Quantity | 1 |
