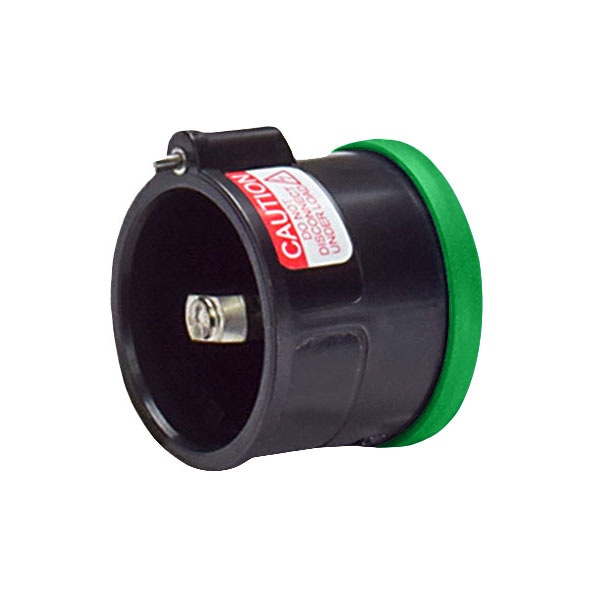

45-3800T-P80 INLET
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 400 A |
| Voltage | 600V AC |
| Color - Plugs and Receptacles | Black |
| Standards | cCSAus, 155873, C22.2 No. 1691-12, E473415, UL 1691 |
| Hz | 60 Hz |
| Wire Strip Length | Phase: 1-1/8 in |
| Short Circuit Current Rating | 10 KA - WITHSTAND |
| Use With Installation Accessory Size | M |
| Number of Notch Positions | 5 |
| Operating Temp. Range | -40C to 60C |
| IP Rating | IP66/67 |
| Tightening Torque | Phase: 360 IN-LBS / 40 N-M |
| Wire Size | 1/0 AWG to 450 MCM |
| Impact Rating | IK08 |
| Wire Temperature Rating | 90 deg C |
| Terminal Type | Lug terminal |
| Contact Configuration | G |
| Package Quantity | 1 |
