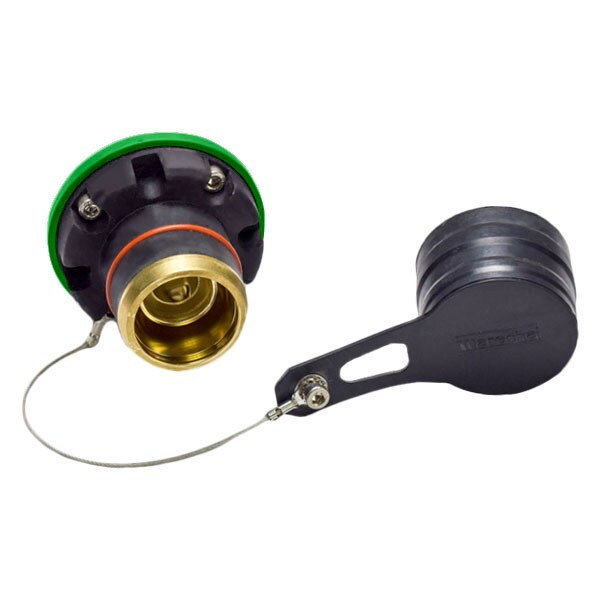

45-4800T-P80 INLET
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 600V AC |
| Amps - Plugs and Receptacles | 600 A |
| Color - Plugs and Receptacles | Black |
| Standards | cCSAus, 155873, C22.2 No. 182.1-07 |
| Auxiliary Contact Rating | 1 A |
| Terminal Type | Lug terminal |
| Impact Rating | IK08 |
| Operating Temp. Range | -40C to 60C |
| Auxiliary Contact Voltage Rating | 250VAC |
| IP Rating | IP66/67 |
| Short Circuit Current Rating | 30 KA - WITHSTAND |
| Use With Installation Accessory Size | S |
| Wire Size | 14 AWG to 12 AWG; 2/0 AWG to 777 MCM |
| Hz | 60 Hz |
| Terminal Connection | Prewired |
| Contact Configuration | G |
| Number of Aux. Outputs | +2 AUX |
| Tightening Torque | Phase: 360 IN-LBS / 40 N-M |
| Package Quantity | 1 |
