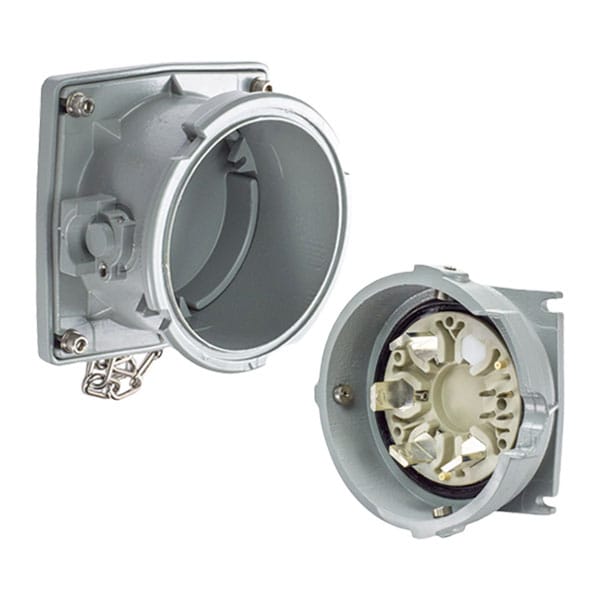

49-68043-48 INLET LESS COVER
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Amps - Plugs and Receptacles | 600 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Gray |
| Use With | Mating Box MB40 |
| IP Rating | IP66/67 |
| Use With Installation Accessory Size | C |
| Wire Size | 14 AWG to 10 AWG; 2 AWG to 750 MCM |
| Impact Rating | IK10 |
| Keying Position | 4 |
| Number of Aux. Outputs | +4 AUX |
| Terminal Connection | Screw |
| Wire Strip Length | Auxiliary: 1/2 in |
| Contact Configuration | 3 P+G |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 360 IN-LBS / 40 N-M |
| Auxiliary Contact Voltage Rating | 480VAC |
| Operating Temp. Range | -40C to 60C |
| Number of Notch Positions | 6 |
| Terminal Type | Lug terminal |
| Auxiliary Contact Rating | 10 A |
| Package Quantity | 1 |
