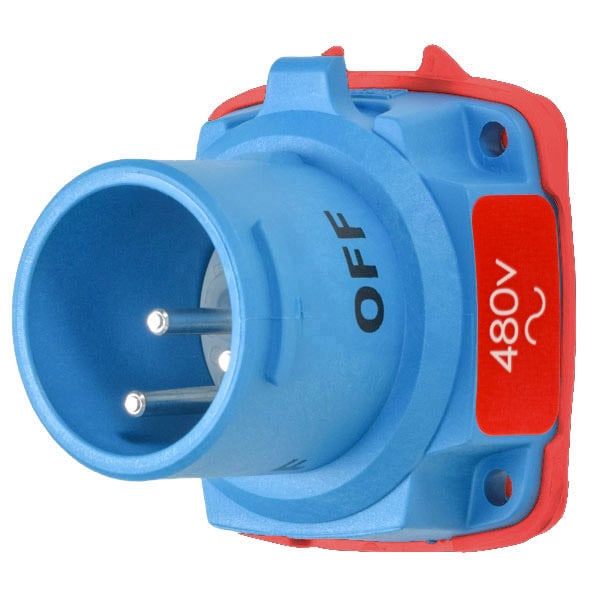

63-18042-A155 INLET WITH NO LOCKOUT HOLE
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Blue |
| NEMA Rating | 4X |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| HP | 3 |
| Wire Strip Length | Phase: 5/8 in |
| Tightening Torque | Phase: 10.6 IN-LBS / 1.2 N-M |
| Use With Installation Accessory Size | 1 |
| Hz | 60 Hz |
| Color Code | Red |
| Contact Configuration | 2 P+G |
| Terminal Type | Screw terminal |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Wire Temperature Rating | 60 deg C |
| Keying Position | 4 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Wire Size | 14 AWG to 12 AWG |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Load Break Amp Rating | 20 A |
| Number of Notch Positions | 23 |
| Load Break Amp Rating_Abnormal Overload | 30 A |
| Package Quantity | 1 |
