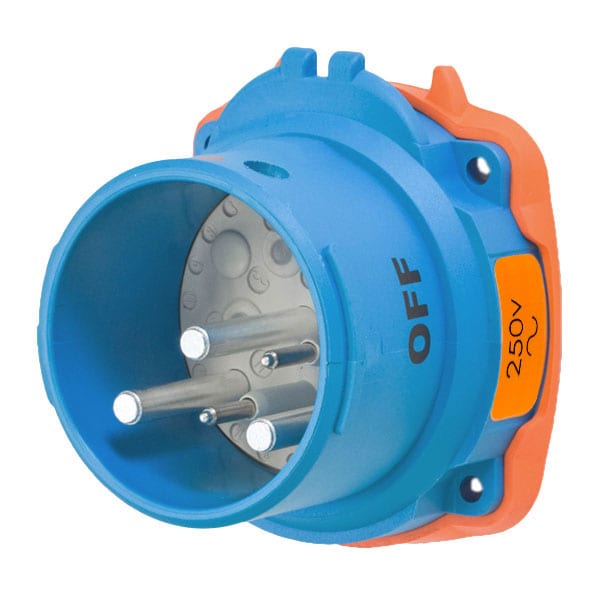

63-68072-972 INLET
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 60 A |
| Voltage | 250V AC |
| Color - Plugs and Receptacles | Blue |
| HP | 3 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508 |
| NEMA Rating | 4X |
| Load Break Amp Rating | 60 A |
| Wire Size | 14 AWG to 14 AWG; 14 AWG to 4 AWG |
| Terminal Connection | Screw |
| Number of Notch Positions | 24 |
| Use With Installation Accessory Size | 3 |
| IP Rating | Primary IP66/67; Secondary IP69 |
| Impact Rating | IK08 |
| Color Code | Orange |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 2 P+G |
| Keying Position | 7 |
| Auxiliary Contact Voltage Rating | 600VAC |
| Auxiliary Contact Rating | 1.2 A |
| Number of Aux. Outputs | +2 AUX |
| Terminal Type | Screw terminal |
| Hz | 60 Hz |
| Wire Strip Length | Auxiliary 5/8 in 7/8 in, Phase |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Package Quantity | 1 |
