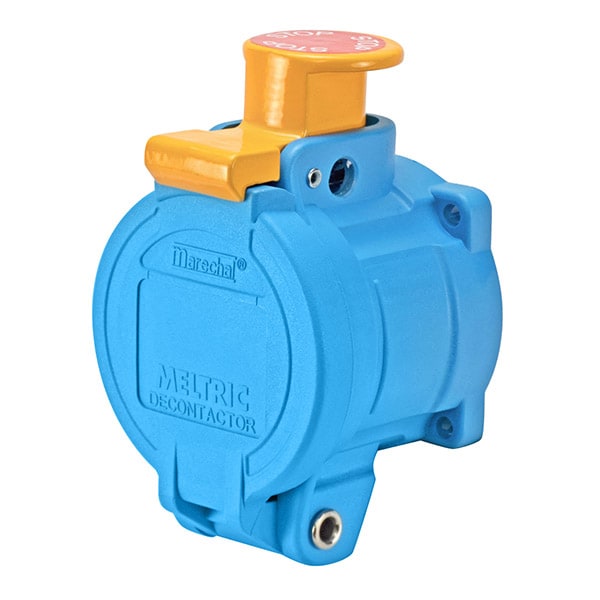

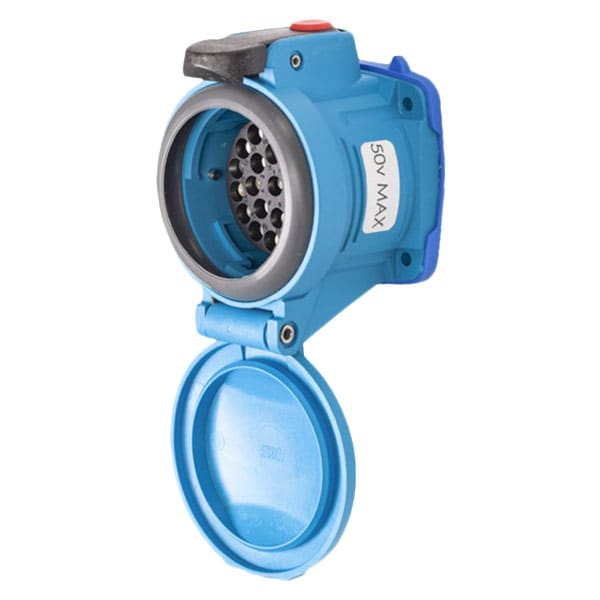

El receptáculo 63-B4002-375-843 es un dispositivo seguro con mecanismo de hongo de pawl bloqueable con candado para garantizar la seguridad en aplicaciones industriales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 2/7.5 A |
| Voltage Rating | 130/480V AC |
| IP Rating | IP67, IP66 |
| Housing Color | Blue |
| Voltage | 480V AC/130V DC |
| Use With | Mating Box MB3 |
| Body Material | Polyester |
| Hz | 50/60 Hz |
| Impact Rating | IK08 |
| Number of Notch Positions | 1 |
| Keying Position | 1 |
| Terminal Type | Solder/Crimp terminal |
| Color Code | Blue |
| Wire Size | 18 AWG to 14 AWG |
| Wire Strip Length | Phase: 25/64 in |
| Contact Configuration | 23 P+G |
| Operating Temp. Range | -40C to 60C |
| Use With Installation Accessory Size | 2 |
| Package Quantity | 1 |
