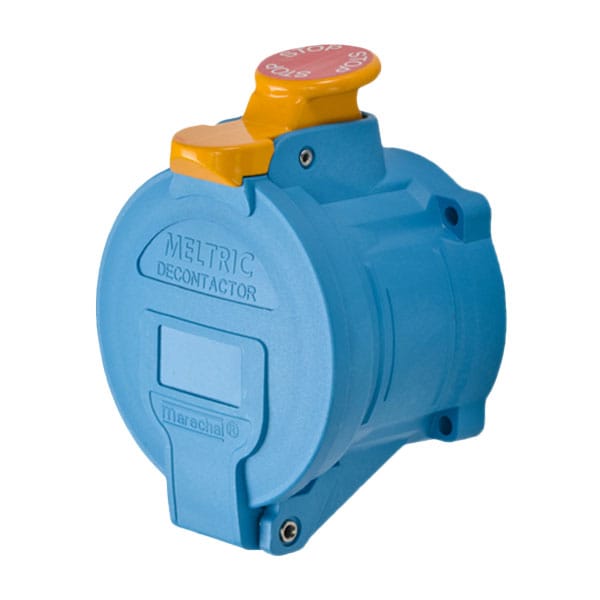

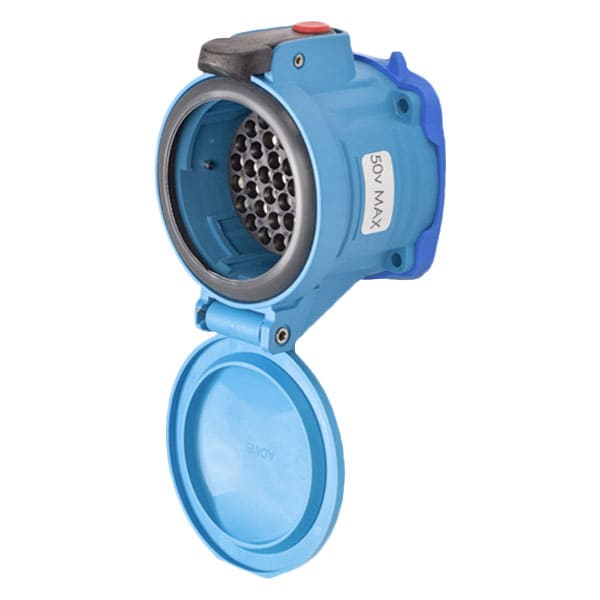

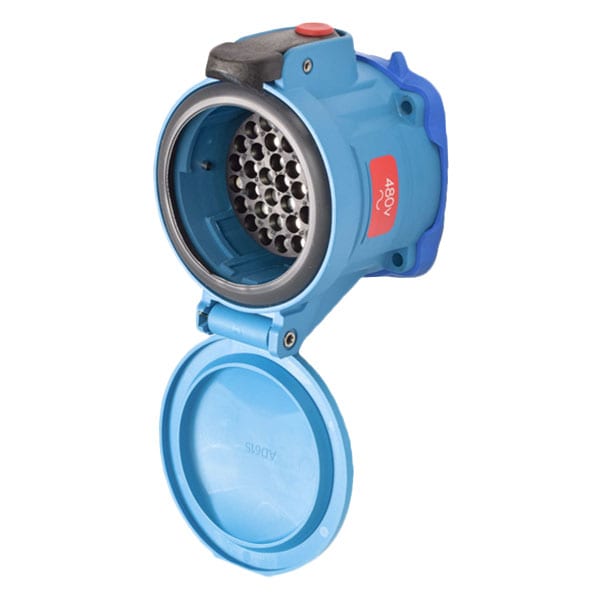

63-C4003-375 RECEPTACLE MUSHROOM PAWL
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 480V AC/130V DC |
| Amps - Plugs and Receptacles | 2 A/7.5 A |
| Color - Plugs and Receptacles | Blue |
| Terminal Type | Solder/Crimp terminal |
| Contact Configuration | 36 P+G |
| Keying Position | 1 |
| Wire Strip Length | Phase: 25/64 in |
| Use With Installation Accessory Size | 3 |
| Impact Rating | IK08 |
| IP Rating | IP66/67 |
| Wire Temperature Rating | 60 deg C |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 18 AWG to 14 AWG |
| Color Code | Blue |
| Hz | 60 Hz |
| Package Quantity | 1 |
