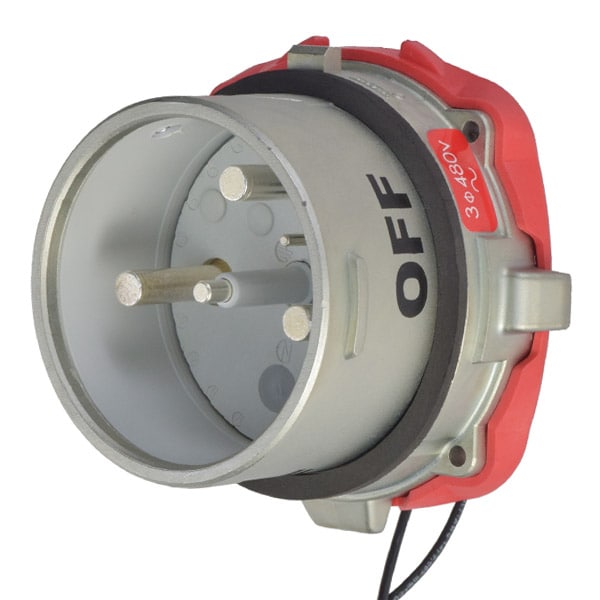

66-98043-262-HAZ INLET
| Material | Metal |
|---|---|
| Color | Metal |
| Phase Terminal Type | Screw terminal |
| Number of Auxiliary Contacts | +2 AUX |
| Rated Voltage | 480 VAC |
| Voltage Color Code | Red |
| NEMA Watertightness | 4X |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Load Break, Abnormal Overload | 225A |
| UL508 Pilot Rating | 2 @ CODE C600 |
| Metal Type | Zamak |
| Maximum Operating Temperature | 104 F |
| Auxiliary Terminal Type | Prewired |
| Aux. Terminal Wiring Capacity | 14 AWG - 14 AWG |
| Frequency | 60 Hz |
| Phase Terminal Tightening Torque | 90 IN-LBS / 10.2 N-M |
| Primary IP Rating | 66/67 |
| Horsepower Rating | 75 HP |
| Aux. Contact Max. Voltage Rating | 600VAC |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Accessory Size | 5 |
| Short Circuit Rating, Fusing | 100 KA 225A (150%) RK1 NTD |
| Wiring Capacity | 4 AWG - 2/0 AWG |
| Contact Configuration | 3P+G |
| Phase Cond. Strip Len. | 1-3/16 in |
| Rated Current | 150 A |
| Aux. Pilot Contact Current Rating | 0.3 A |
| Keying Position | 2 |
| Load Break, Normal Operation | 225A |
| Wiring Capacity, Type W | 4 AWG - 2/0 AWG |
| Minimum Operating Temperature | -40F (-40C) |
| Wire Temperature Rating | 60C |
| Impact Rating | IK09 |
| Package Quantity | 1 |
