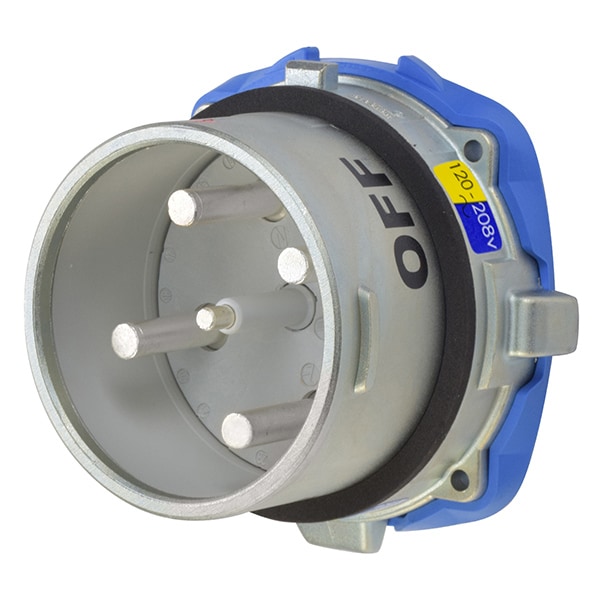

La entrada Meltric 66-98167-A155-HAZ sin orificio de bloqueo es una solución segura y confiable para conexiones eléctricas. Fabricada con materiales de alta calidad, esta entrada garantiza un rendimiento óptimo en entornos industriales.
| Material | Metal |
|---|---|
| Color | Metal |
| Phase Terminal Tightening Torque | 90 IN-LBS / 10.2 N-M |
| Wiring Capacity | 4 AWG - 2/0 AWG |
| Accessory Size | 5 |
| Horsepower Rating | 7.5HP/30HP |
| Load Break, Abnormal Overload | 225A |
| Phase Terminal Type | Screw terminal |
| Keying Position | 12 |
| Rated Current | 150 A |
| Voltage Color Code | Blue |
| Impact Rating | IK09 |
| Short Circuit Rating, Fusing | 100 KA 225A (150%) RK1 NTD |
| Wire Temperature Rating | 75C |
| Load Break, Normal Operation | 225A |
| Minimum Operating Temperature | -40F (-40C) |
| NEMA Watertightness | 4X |
| Metal Type | Zamak |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 213-M1987 |
| Frequency | 60 Hz |
| Wiring Capacity, Type W | 4 AWG - 2/0 AWG |
| Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
| Rated Voltage | 120/208 VAC |
| Number of Auxiliary Contacts | NO AUX |
| Contact Configuration | 3P+N+G |
| Primary IP Rating | 66/67 |
| Phase Cond. Strip Len. | 1-3/16 in |
| Mating Box | MB10M |
| Maximum Operating Temperature | 104 F |
| Package Quantity | 1 |
