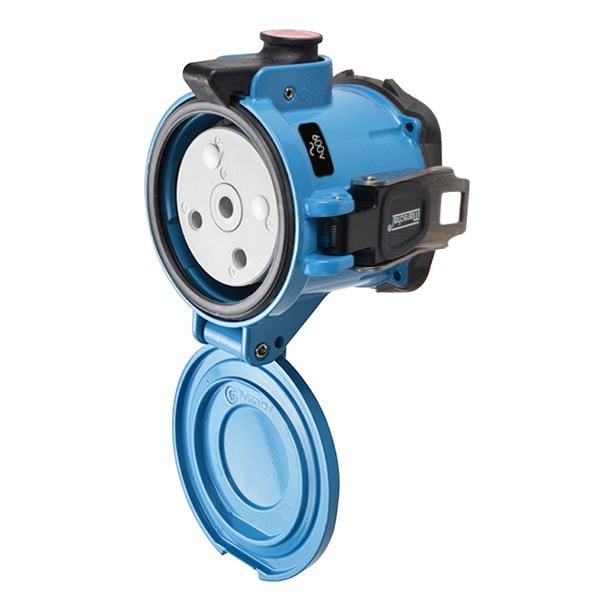

Ds100 Receptacle Metal Blue Size 5 Type 4X Ip 69 2P+G 100A 600 Vac 60 Hz No Aux
| Item | Receptacle |
|---|---|
| Amps - Plugs and Receptacles | 100 A |
| Voltage | 600 VAC |
| Receptacle Type | Aluminum |
| Color - Plugs and Receptacles | Blue |
| Material | Metal |
| Number of Aux. Outputs | NO AUX |
| Contact Configuration | 2 P+G |
| HP | 5 hp |
| Operating Temp. Range | -40F(-40C) to 140F (60C) |
| Impact Rating | IK10 |
| Standards | UL 2682; UL 1682; cCSAus; C22.2 No. 182.1-13 |
| Short Circuit Current Rating | 100 kA - Close & Withstand |
| Package Quantity | 1 |
