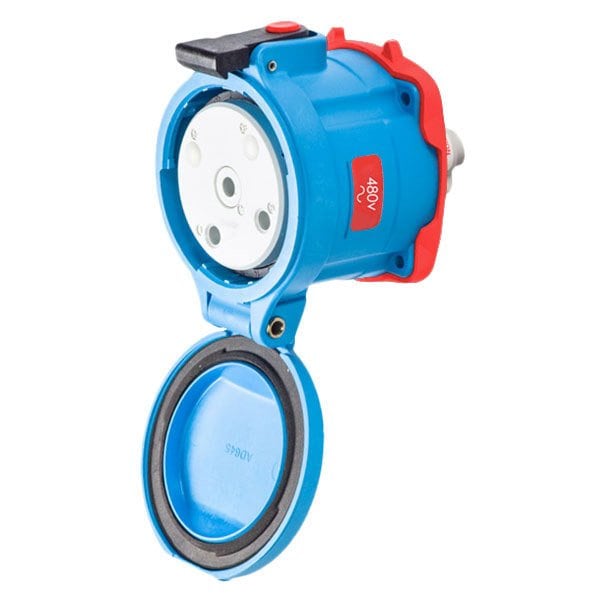

Ds60 Receptacle Poly Blue Size 4 Type 4X Ip 69 2P+G 60A 480 Vac 60 Hz No Aux Mushroom Pawl
| Item | Receptacle |
|---|---|
| Voltage | 480 VAC |
| Amps - Plugs and Receptacles | 60 A |
| Color - Plugs and Receptacles | Blue |
| Phase | 10 AWG - 2 AWG Screw Terminal |
| Material | Poly |
| Contact Configuration | 2 P+G |
| Number of Aux. Outputs | NO AUX |
| Standards | UL 2682; UL 1682; cCSAus; C22.2 No. 182.1-13 |
| Short Circuit Current Rating | 100 kA - Close & Withstand |
| Operating Temp. Range | -40F(-40C) to 140F (60C) |
| HP | 15 HP |
| Terminal Type | Pawl |
| Impact Rating | IK09 |
| Package Quantity | 1 |
