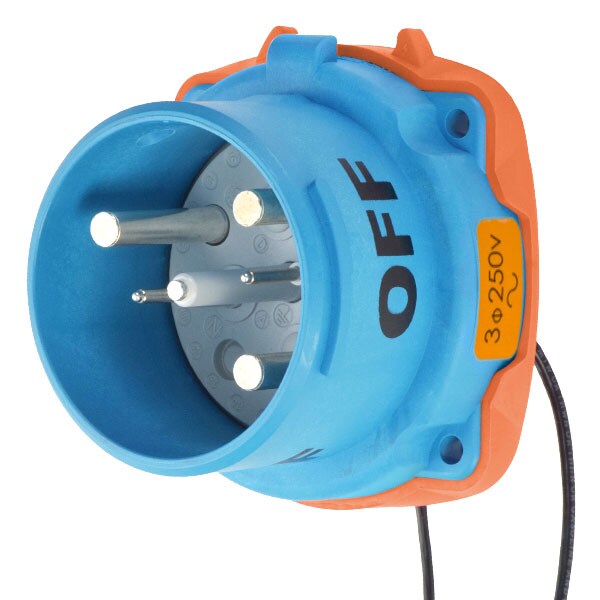

Pin & Sleeve Receptacle, 100 A, 250V AC, Three Phase, 3 Pole, NEMA 4X
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Housing Color | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 20 |
| Use With | Mating Box MB6 |
| Voltage | 250V AC |
| Body Material | Polyester |
| NEMA Rating | 4X |
| Number of Aux. Outputs | +2 AUX |
| Wire Strip Length | Phase: 15/16 in |
| Terminal Type | Screw terminal |
| Hz | 60 Hz |
| Terminal Connection | Prewired |
| Impact Rating | IK08 |
| Load Break Amp Rating | 100 A |
| Number of Notch Positions | 24 |
| Use With Installation Accessory Size | 4 |
| Keying Position | 17 |
| Wire Temperature Rating | 60 deg C |
| Wire Size | 14 AWG; 10 AWG to 2 AWG |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Auxiliary Contact Voltage Rating | 600VAC |
| Auxiliary Contact Rating | 1.2 A |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Color Code | Orange |
| Operating Temp. Range | -40C to 60C |
| Contact Configuration | 3 P+G |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
