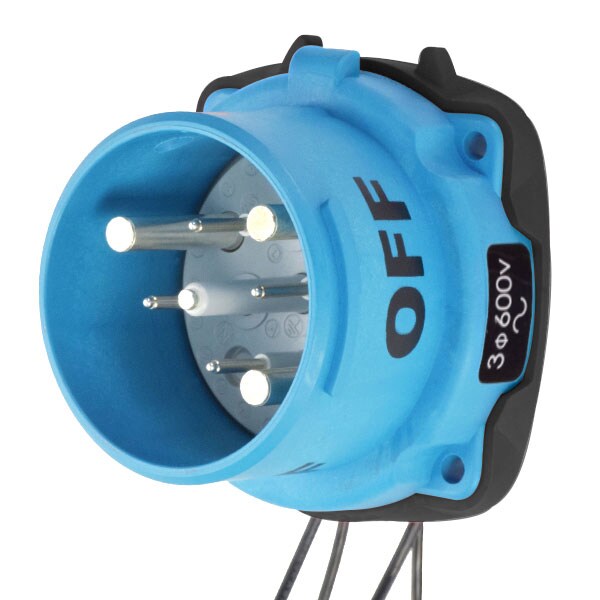

Este receptáculo de clavija y enchufe de Meltric está diseñado para una corriente de 100 A y cuenta con 3 polos, cumpliendo con la normativa NEMA 4X para uso en ambientes húmedos y polvorientos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| Use With | Mating Box MB6 |
| NEMA Rating | 4X |
| Body Material | Polyester |
| HP | 50 |
| Auxiliary Contact Rating | 0.6 A |
| Impact Rating | IK08 |
| Contact Configuration | 3 P+G |
| Color Code | Black |
| Load Break Amp Rating | 100 A |
| Terminal Connection | Prewired |
| Terminal Type | Screw terminal |
| Wire Size | 14 AWG; 10 AWG to 2 AWG |
| Keying Position | 18 |
| Wire Strip Length | Phase: 15/16 in |
| Number of Notch Positions | 24 |
| Operating Temp. Range | -40C to 60C |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 4 |
| Hz | 60 Hz |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Number of Aux. Outputs | +4 AUX |
| Auxiliary Contact Voltage Rating | 600VAC |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
