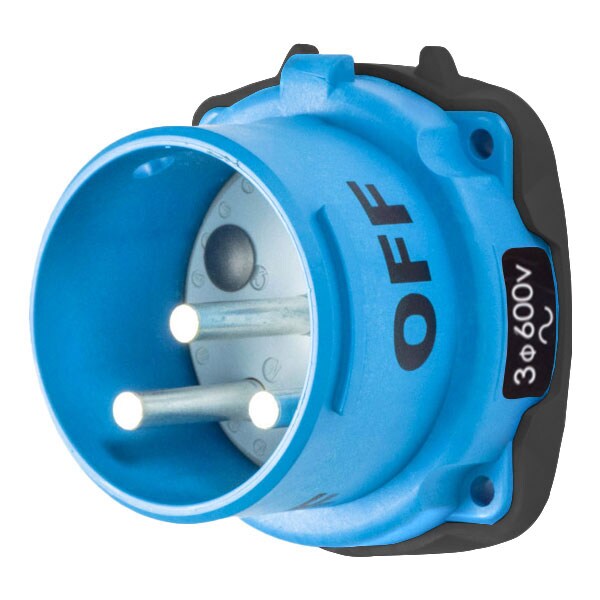

Pin & Sleeve Receptacle, 100 A, 600V AC, NEMA 3R
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 600V AC |
| Number of Wires | 4 |
| IP Rating | IP54 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| Use With | Mating Box MB6 |
| NEMA Rating | 3R |
| Body Material | Polyester |
| Voltage | 600V AC |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Keying Position | 18 |
| Use With Installation Accessory Size | 4 |
| Number of Aux. Outputs | NO AUX |
| Wire Strip Length | Phase: 15/16 in |
| Contact Configuration | 2 P+G |
| Color Code | Black |
| Wire Temperature Rating | 60 deg C |
| Terminal Type | Screw terminal |
| Load Break Amp Rating | 100 A |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Wire Size | 10 AWG to 2 AWG |
| Number of Notch Positions | 24 |
| Hz | 60 Hz |
| Load Break Amp Rating_Abnormal Overload | 150 A |
| Package Quantity | 1 |
