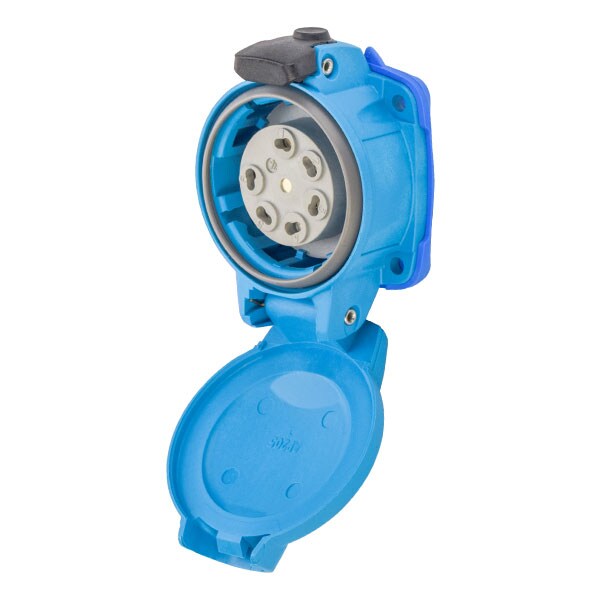

Este receptáculo de clavija y enchufe de Meltric está diseñado para 15 A y 480V AC con 5 polos. Es ideal para aplicaciones industriales y comerciales que requieren una conexión segura y confiable.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 15 A |
| Voltage Rating | 480V AC |
| Number of Poles | 5 |
| Number of Wires | 4 |
| IP Rating | IP55 |
| Wire Connection Type | Screw Terminals |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-02, E79796, UL 1682 |
| Voltage | 480V AC |
| Body Material | Polyester |
| Impact Rating | IK08 |
| Keying Position | 1 |
| Terminal Type | Screw terminal |
| Wire Size | 18 AWG to 10 AWG |
| Operating Temp. Range | -40C to 60C |
| Contact Configuration | 5 P+G |
| Use With Installation Accessory Size | 1 |
| Hz | 60 Hz |
| Color Code | Blue |
| Package Quantity | 1 |
