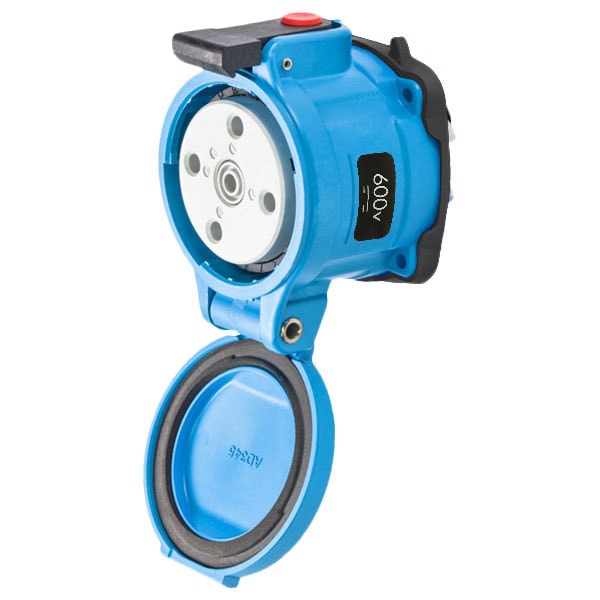

Este receptáculo de clavija y enchufe de 15 A y 600V AC cumple con el estándar NEMA 3R para aplicaciones en exteriores. Fabricado por Meltric, líder en soluciones de conexión eléctrica.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 15 A |
| Voltage Rating | 600V AC |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | UL, E79796, UL 1682 |
| Voltage | 600V DC |
| Body Material | Polyester |
| NEMA Rating | 3R |
| Use With | Mating Box MB3 |
| Keying Position | 5 |
| Wire Size | 14 AWG to 8 AWG |
| Impact Rating | IK08 |
| Contact Configuration | 2 P+G |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Color Code | Black |
| Number of Notch Positions | 24 |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 2 |
| Wire Strip Length | Phase: 7/16 in |
| Load Break Amp Rating_Abnormal Overload | 22.5 A |
| Package Quantity | 1 |
