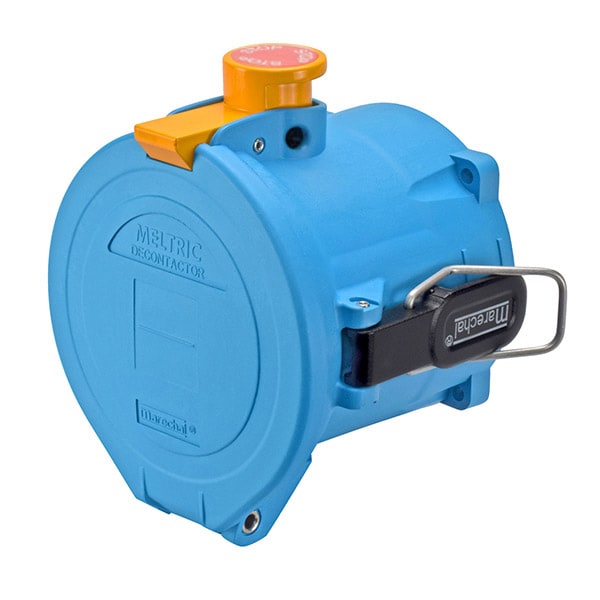

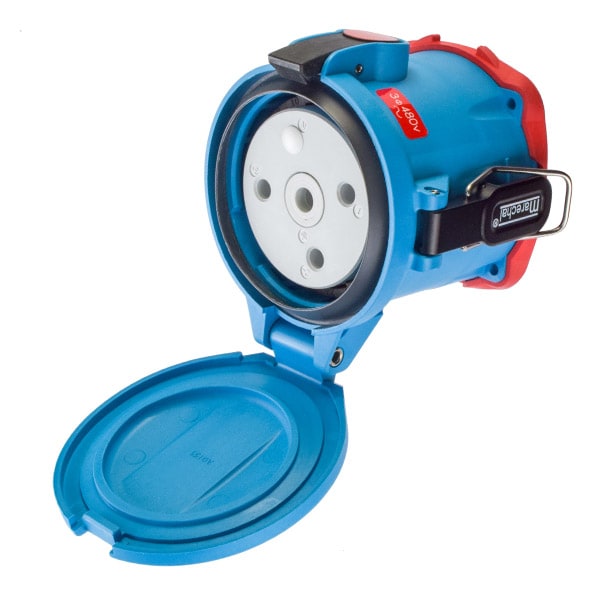

Este receptáculo Pin & Sleeve de Meltric está diseñado para 150 A y 480V AC, con clasificación NEMA 4X para aplicaciones industriales. Su diseño robusto y confiable lo hace ideal para entornos exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 150 A |
| Voltage Rating | 480V AC |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| HP | 75 |
| Body Material | Polyester |
| Voltage | 480V AC |
| NEMA Rating | 4X |
| Impact Rating | IK08 |
| Wire Temperature Rating | 60 deg C |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Load Break Amp Rating | 150 A |
| Color Code | Red |
| Hz | 60 Hz |
| Wire Strip Length | Phase: 1-3/16 in |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Contact Configuration | 3 P+G |
| Terminal Type | Screw terminal |
| Number of Aux. Outputs | NO AUX |
| Use With Installation Accessory Size | 5 |
| Keying Position | 2 |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 4 AWG to 2/0 AWG |
| Load Break Amp Rating_Abnormal Overload | 225 A |
| Package Quantity | 1 |
